  11. Square Turning Insert, Square, 4, SNMG, 2, Carbide

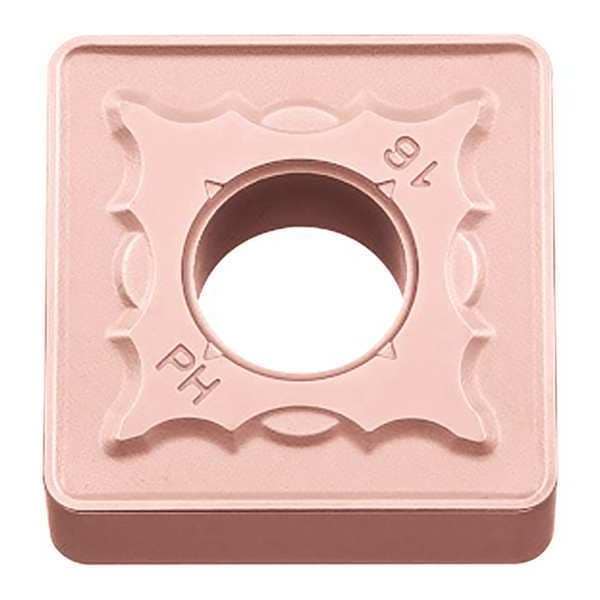

Kyocera Square Turning Insert, Square, 4, SNMG, 2, Carbide SNMG432PHCA310 - main

Square Turning Insert, Square, 4, SNMG, 2, Carbide

  • Mfr # SNMG432PHCA310

  • Zoro # G7431089

product price: $10.09
/ea
Sold in multiples of 10 for $100.90

Key Features

Insert Shape
Square
Insert Style
SNMG
Inscribed Circle
4
Insert Size
432
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNMG432PHCA310
Zoro #
G7431089
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
432
Corner Radius
2
Mounting Hole Dia.
0.203"
Insert Thickness
0.1875"
Nose Radius
0.0313"
Thickness
3/16 in

Details

Item
Square Turning Insert
Insert Shape
Square
Insert Style
SNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
CA310
Insert Material
Carbide
Insert Application
Roughing
Rake
Negative
ISO Number
SNMG120408PH
Coating
TiCN/Al2O3
Non Ferrous (N) Compatibility
No
No. of Edges
8
For Use With
Toolholders, Boring Bars
Mounting Style
Clamp
Super Alloy (S) Compatibility
No
Cutting Direction
Neutral
ANSI Number
SNMG432PH-CA310
Relief Angle
0 Degrees
Workpiece Compatibility
Cast Iron (K)
Steel (P) Compatibility
No
Cast Iron (K) Compatibility
Yes
Stainless (M) Compatibility
No
Hardened (H) Compatibility
No
Secondary Material Application ISO Code
K
Clearance Angle
0 Degrees
Coating Process
CVD
Finish - Machining
TiCN+Al2O3+Ti
Manufacturer Grade
CA310
Chip-Breaker Code
PH
Cutting Application
Turning
Primary Material Application
Cast Iron
Number of Cutting Edges
8
Material - Machining
Carbide
Included Angle
90 Degrees
Chip-Breaker Style
Double Sided
Measurement System
Fractional Inch
Secondary Material Application
Cast Iron
Shape
Square
ANSI Code
SNMG432PH
Primary Material Application ISO Code
K
Insert Holding Type
Screw
Material
Carbide

Description

Square Turning Insert, Chip-Breaker Code PH, Inscribed Circle 1/2 in, TiCN+Al2O3+Ti
