  11. Square Turning Insert, Square, 4, SNMG, 2, Carbide

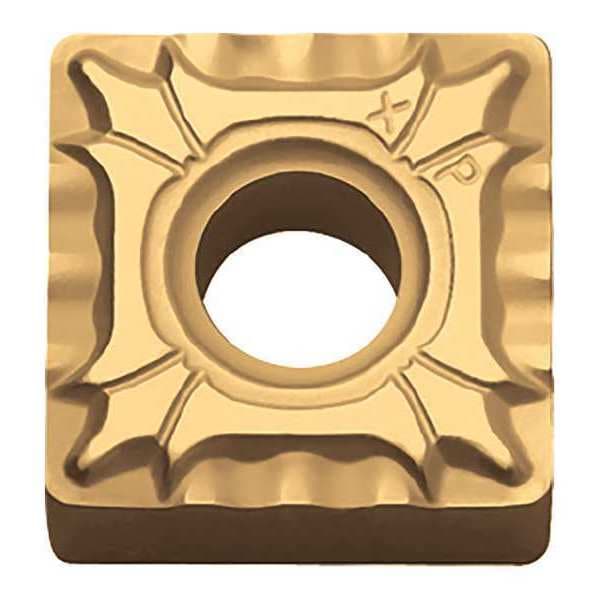

Kyocera Square Turning Insert, Square, 4, SNMG, 2, Carbide SNMG432XP CA525 - main

Square Turning Insert, Square, 4, SNMG, 2, Carbide

  • Mfr # SNMG432XP CA525

  • Zoro # G7431107

product price: $10.09
/ea
Sold in multiples of 10 for $100.90

Key Features

Insert Shape
Square
Insert Style
SNMG
Inscribed Circle
4
Insert Size
432
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
SNMG432XP CA525
Zoro #
G7431107
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
432
Corner Radius
2
Mounting Hole Dia.
0.203"
Insert Thickness
0.1875"
Nose Radius
0.0313"
Thickness
3/16 in

Details

Item
Square Turning Insert
Insert Shape
Square
Insert Style
SNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
CA525
Insert Material
Carbide
Insert Application
Finishing
Rake
Negative
ISO Number
SNMG120408XP
Non Ferrous (N) Compatibility
No
Relief Angle
0 Degrees
ANSI Number
SNMG432XP-CA525
No. of Edges
8
Steel (P) Compatibility
Yes
Super Alloy (S) Compatibility
No
Mounting Style
Clamp
For Use With
Toolholders, Boring Bars
Cast Iron (K) Compatibility
No
Workpiece Compatibility
Steel (P)
Stainless (M) Compatibility
No
Cutting Direction
Neutral
Coating
TiCN/Al2O3/TiN
Hardened (H) Compatibility
No
ANSI Code
SNMG432XP CA525
Manufacturer Grade
CA525
Finish - Machining
TiCN+Al2O3+TiN
Chip-Breaker Style
Double Sided
Shape
Square
Insert Holding Type
Screw
Chip-Breaker Code
XP
Coating Process
CVD
Included Angle
90 Degrees
Primary Material Application
Steel
Cutting Application
Turning
Number of Cutting Edges
8
Primary Material Application ISO Code
P
Clearance Angle
0 Degrees
Material - Machining
Carbide
Measurement System
Fractional Inch
Material
Carbide

Description

Square Turning Insert, Chip-Breaker Code XP, Inscribed Circle 1/2 in, TiCN+Al2O3+TiN
