  11. Square Turning Insert, Square, 4, SNMG, 2, Carbide

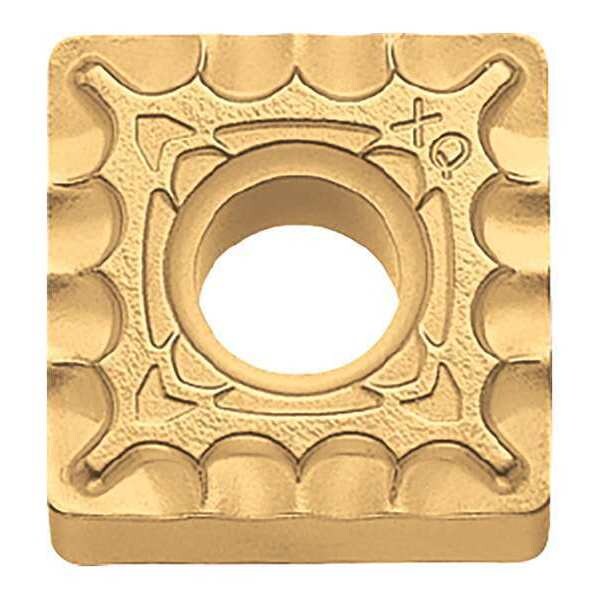

Kyocera Square Turning Insert, Square, 4, SNMG, 2, Carbide SNMG432XQ CA515 - main

Square Turning Insert, Square, 4, SNMG, 2, Carbide

  • Mfr # SNMG432XQ CA515

  • Zoro # G7431159

product price: $10.39
/ea
Sold in multiples of 10 for $103.90

Key Features

Insert Shape
Square
Insert Style
SNMG
Inscribed Circle
4
Insert Size
432
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNMG432XQ CA515
Zoro #
G7431159
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
432
Corner Radius
2
Nose Radius
0.0313"
Insert Thickness
0.1875"
Mounting Hole Dia.
0.203"
Thickness
3/16 in

Details

Item
Square Turning Insert
Insert Shape
Square
Insert Style
SNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
CA515
Insert Material
Carbide
Insert Application
Medium
Rake
Negative
ISO Number
SNMG120408XQ
For Use With
Toolholders, Boring Bars
No. of Edges
8
Non Ferrous (N) Compatibility
No
Mounting Style
Clamp
Super Alloy (S) Compatibility
No
Stainless (M) Compatibility
No
Steel (P) Compatibility
Yes
Relief Angle
0 Degrees
ANSI Number
SNMG432XQ-CA515
Hardened (H) Compatibility
No
Cast Iron (K) Compatibility
No
Coating
TiCN/Al2O3/TiN
Cutting Direction
Neutral
Workpiece Compatibility
Steel (P)
Manufacturer Grade
CA515
Material - Machining
Carbide
Shape
Square
Primary Material Application
Steel
Measurement System
Fractional Inch
ANSI Code
SNMG432XQ CA515
Chip-Breaker Style
Double Sided
Number of Cutting Edges
8
Finish - Machining
TiCN+Al2O3+TiN
Clearance Angle
0 Degrees
Primary Material Application ISO Code
P
Features
Wear Resistance and Stability
Cutting Application
Turning
Insert Holding Type
Screw
Chip-Breaker Code
XQ
Included Angle
90 Degrees
Coating Process
CVD
Material
Carbide

Description

Square Turning Insert, Chip-Breaker Code XQ, Inscribed Circle 1/2 in, TiCN+Al2O3+TiN
