  11. Triangle Turning Insert, Triangle, 3/8 in, TNMG, 0.0312 in, Carbide

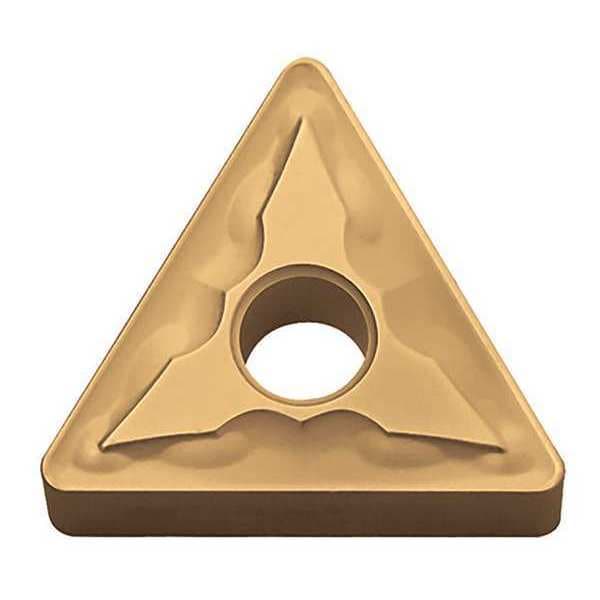

Kyocera Triangle Turning Insert, Triangle, 3/8 in, TNMG, 0.0312 in, Carbide TNMG332GS CA515 - main

Triangle Turning Insert, Triangle, 3/8 in, TNMG, 0.0312 in, Carbide

  • Mfr # TNMG332GS CA515

  • Zoro # G7383997

product price: $8.69
/ea
Sold in multiples of 10 for $86.90

Key Features

Insert Shape
Triangle
Insert Style
TNMG
Inscribed Circle
3/8 in
Insert Size
332
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TNMG332GS CA515
Zoro #
G7383997
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
332
Corner Radius
0.0312 in
Mounting Hole Dia.
0.150"
Nose Radius
0.0313"
Insert Thickness
0.1875"
Thickness
0.1875 in
Through Hole Inside Dia.
0.15 in

Details

Item
Triangle Turning Insert
Insert Shape
Triangle
Insert Style
TNMG
Inscribed Circle
3/8 in
Chip-Breaker
Yes
Grade
CA515
Insert Material
Carbide
Insert Application
Medium
Rake
Negative
ISO Number
TNMG160408GS
Cast Iron (K) Compatibility
No
Hardened (H) Compatibility
No
Workpiece Compatibility
Steel (P)
Stainless (M) Compatibility
No
Coating
TiCN/Al2O3/TiN
Non Ferrous (N) Compatibility
No
Relief Angle
0 Degrees
Steel (P) Compatibility
Yes
Cutting Direction
Neutral
Mounting Style
Clamp
No. of Edges
6
For Use With
Toolholders, Boring Bars
ANSI Number
TNMG332GS-CA515
Super Alloy (S) Compatibility
No
Shape
Triangle
ANSI Code
TNMG332GS CA515
Material - Machining
Carbide
Clearance Angle
0 Degrees
Insert Holding Type
Straight Hole
Primary Material Application
Steel
Coating Process
CVD
Manufacturer Grade
CA515
Chip-Breaker Style
Double Sided
Included Angle
60 Degrees
Cutting Application
Turning
Finish - Machining
TiCN+Al2O3+TiN
Number of Cutting Edges
6
Chip-Breaker Code
GS
Features
Crack Resistant
Measurement System
Fractional Inch
Primary Material Application ISO Code
P
Material
Carbide

Description

Triangle Turning Insert, Chip-Breaker Code GS, Inscribed Circle 3/8 in, TiCN+Al2O3+TiN
