  11. Triangle Turning Insert, Triangle, 3/8 in, TPMR, 0.0156 in, Carbide

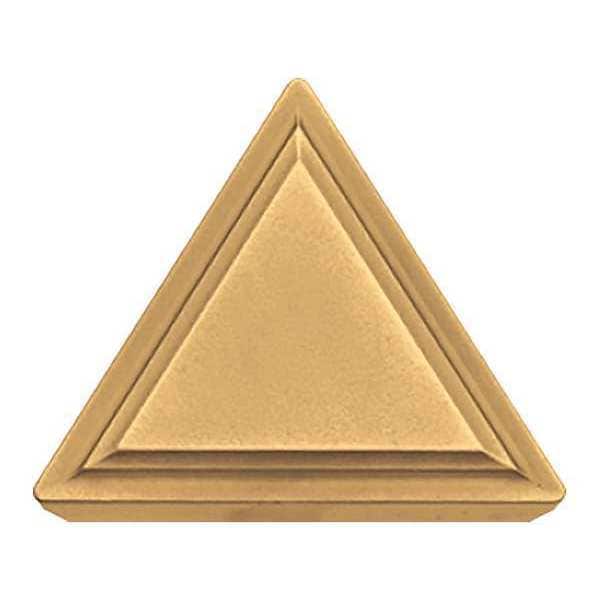

Kyocera Triangle Turning Insert, Triangle, 3/8 in, TPMR, 0.0156 in, Carbide TPMR321 CA525 - main

Triangle Turning Insert, Triangle, 3/8 in, TPMR, 0.0156 in, Carbide

  • Mfr # TPMR321 CA525

  • Zoro # G7420939

product price: $9.99
/ea
Sold in multiples of 10 for $99.90

Key Features

Insert Shape
Triangle
Insert Style
TPMR
Inscribed Circle
3/8 in
Insert Size
321
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TPMR321 CA525
Zoro #
G7420939
UPC #
-
Country of Origin
Multiple

Dimensions

Insert Size
321
Corner Radius
0.0156 in
Insert Thickness
0.1250"
Nose Radius
0.0156"
Mounting Hole Dia.
0.177"
Thickness
0.125 in

Details

Item
Triangle Turning Insert
Insert Shape
Triangle
Insert Style
TPMR
Inscribed Circle
3/8 in
Chip-Breaker
Yes
Grade
CA525
Insert Material
Carbide
Insert Application
Roughing
Rake
Negative
ISO Number
TPMR160304
Super Alloy (S) Compatibility
No
ANSI Number
TPMR321-CA525
Stainless (M) Compatibility
No
No. of Edges
3
For Use With
Toolholders, Boring Bars
Mounting Style
Clamp
Non Ferrous (N) Compatibility
No
Steel (P) Compatibility
Yes
Relief Angle
11 Degrees
Cast Iron (K) Compatibility
No
Workpiece Compatibility
Steel (P)
Coating
TiCN/Al2O3/TiN
Hardened (H) Compatibility
No
Cutting Direction
Neutral
Primary Material Application ISO Code
P
Material - Machining
Carbide
Cutting Application
Turning
Measurement System
Fractional Inch
Features
Crack Resistant
ANSI Code
TPMR321 CA525
Shape
Triangle
Clearance Angle
11 Degrees
Number of Cutting Edges
3
Finish - Machining
TiCN+Al2O3+TiN
Included Angle
60 Degrees
Manufacturer Grade
CA525
Primary Material Application
Steel
Insert Holding Type
No Screw Hole
Coating Process
CVD
Chip-Breaker Style
On One Side
Material
Carbide

Description

Triangle Turning Insert, Inscribed Circle 3/8 in, TiCN+Al2O3+TiN
