  11. Triangle Turning Insert, Triangle, 3/8 in, TPMT, 0.0312 in, Carbide

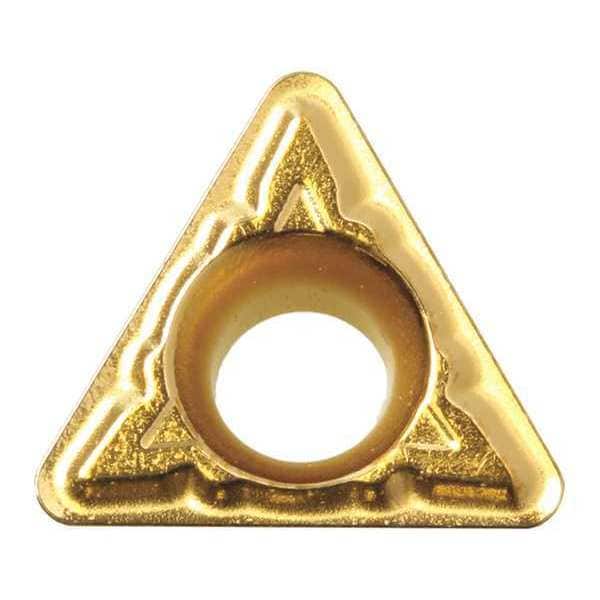

Kyocera Triangle Turning Insert, Triangle, 3/8 in, TPMT, 0.0312 in, Carbide TPMT322XQ CA525 - main

Triangle Turning Insert, Triangle, 3/8 in, TPMT, 0.0312 in, Carbide

  • Mfr # TPMT322XQ CA525

  • Zoro # G7400191

product price: $9.85
/ea
Sold in multiples of 10 for $98.50

Key Features

Insert Shape
Triangle
Insert Style
TPMT
Inscribed Circle
3/8 in
Insert Size
322
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TPMT322XQ CA525
Zoro #
G7400191
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
322
Corner Radius
0.0312 in
Nose Radius
0.0313"
Mounting Hole Dia.
0.173"
Insert Thickness
0.1250"
Through Hole Inside Dia.
0.1732 in
Thickness
0.125 in

Details

Item
Triangle Turning Insert
Insert Shape
Triangle
Insert Style
TPMT
Inscribed Circle
3/8 in
Chip-Breaker
Yes
Grade
CA525
Insert Material
Carbide
Insert Application
Finishing
Rake
Negative
ISO Number
TPMT160308XQ
No. of Edges
3
Relief Angle
11 Degrees
Stainless (M) Compatibility
No
Workpiece Compatibility
Steel (P)
ANSI Number
TPMT322XQ-CA525
Cutting Direction
Neutral
For Use With
Toolholders, Boring Bars
Coating
TiCN/Al2O3/TiN
Steel (P) Compatibility
Yes
Hardened (H) Compatibility
No
Non Ferrous (N) Compatibility
No
Super Alloy (S) Compatibility
No
Cast Iron (K) Compatibility
No
Mounting Style
Clamp
Chip-Breaker Code
XQ
Measurement System
Fractional Inch
Insert Holding Type
40 Degrees to 60 Degrees Countersink Hole
Finish - Machining
TiCN+Al2O3+TiN
Manufacturer Grade
CA525
Chip-Breaker Style
On One Side
Features
Crack Resistant
Primary Material Application ISO Code
P
Coating Process
CVD
Cutting Application
Turning
Shape
Triangle
Primary Material Application
Steel
Clearance Angle
11 Degrees
Material - Machining
Carbide
Included Angle
60 Degrees
ANSI Code
TPMT322XQ CA525
Number of Cutting Edges
3
Material
Carbide

Description

Triangle Turning Insert, Chip-Breaker Code XQ, Inscribed Circle 3/8 in, TiCN+Al2O3+TiN
