  11. Turning Insert, Trigon, 4, WNMG, 1, Carbide

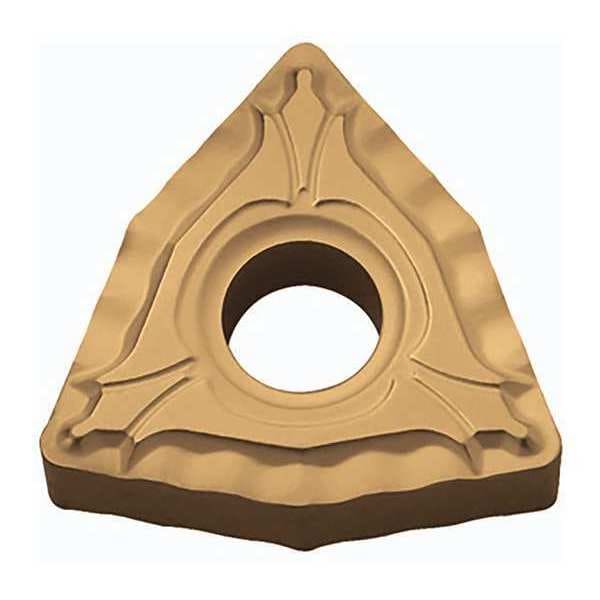

Kyocera Turning Insert, Trigon, 4, WNMG, 1, Carbide WNMG431XP CA515 - main

Turning Insert, Trigon, 4, WNMG, 1, Carbide

  • Mfr # WNMG431XP CA515

  • Zoro # G7384977

product price: $10.19
/ea
Sold in multiples of 10 for $101.90

Key Features

Insert Shape
Trigon
Insert Style
WNMG
Inscribed Circle
4
Insert Size
431
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WNMG431XP CA515
Zoro #
G7384977
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
431
Corner Radius
1
Nose Radius
0.0156"
Insert Thickness
0.1875"
Mounting Hole Dia.
0.203"
Thickness
3
Through Hole Inside Dia.
0.2031 in

Details

Item
Turning Insert
Insert Shape
Trigon
Insert Style
WNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
CA515
Insert Material
Carbide
Insert Application
Finishing
Rake
Negative
ISO Number
WNMG080404XP
Cutting Direction
Neutral
Stainless (M) Compatibility
No
Workpiece Compatibility
Steel (P)
Super Alloy (S) Compatibility
No
No. of Edges
6
Coating
TiCN/Al2O3/TiN
Relief Angle
0 Degrees
For Use With
Toolholders, Boring Bars
Mounting Style
Clamp
Steel (P) Compatibility
Yes
Hardened (H) Compatibility
No
Cast Iron (K) Compatibility
No
Non Ferrous (N) Compatibility
No
ANSI Number
WNMG431XP-CA515
Chip-Breaker Style
Double Sided
Features
Crack Resistant
Coating Process
CVD
Finish - Machining
TiCN+Al2O3+TiN
Clearance Angle
0 Degrees
Chip-Breaker Code
XP
ANSI Code
WNMG431XP CA515
Primary Material Application ISO Code
P
Primary Material Application
Steel
Included Angle
80 Degrees
Shape
Trigon
Number of Cutting Edges
6
Material - Machining
Carbide
Cutting Application
Turning
Insert Holding Type
Straight Hole
Measurement System
Fractional Inch
Manufacturer Grade
CA515
Material
Carbide

Description

Turning Insert, Chip-Breaker Code XP, Inscribed Circle 1/2 in, TiCN+Al2O3+TiN
