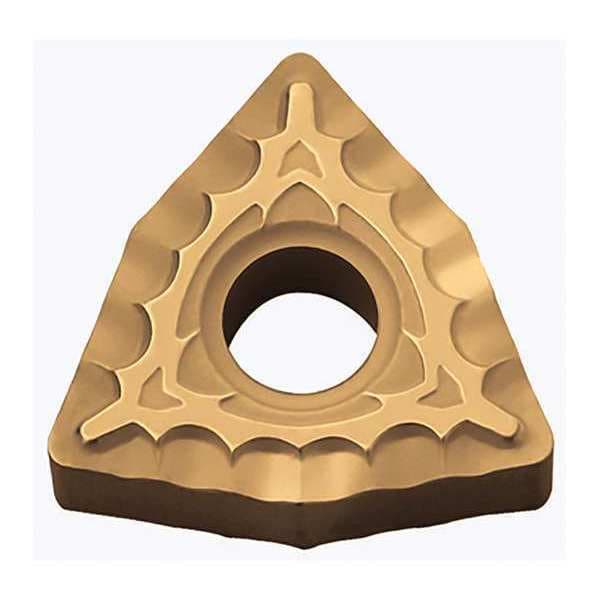

Kyocera Turning Insert, Trigon, 4, WNMG, 2, Carbide WNMG432XQ CA515 - main

Turning Insert, Trigon, 4, WNMG, 2, Carbide

  • Mfr # WNMG432XQ CA515

  • Zoro # G7386036

product price: $10.89
/ea
Sold in multiples of 10 for $108.90

Key Features

Insert Shape
Trigon
Insert Style
WNMG
Inscribed Circle
4
Insert Size
432
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WNMG432XQ CA515
Zoro #
G7386036
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
432
Corner Radius
2
Insert Thickness
0.1875"
Mounting Hole Dia.
0.203"
Nose Radius
0.0313"
Thickness
3
Through Hole Inside Dia.
0.2031 in

Details

Item
Turning Insert
Insert Shape
Trigon
Insert Style
WNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
CA515
Insert Material
Carbide
Insert Application
Medium
Rake
Negative
ISO Number
WNMG080408XQ
Mounting Style
Clamp
Hardened (H) Compatibility
No
Stainless (M) Compatibility
No
For Use With
Toolholders, Boring Bars
Non Ferrous (N) Compatibility
No
Cast Iron (K) Compatibility
No
Super Alloy (S) Compatibility
No
ANSI Number
WNMG432XQ-CA515
Workpiece Compatibility
Steel (P)
Relief Angle
0 Degrees
Steel (P) Compatibility
Yes
Cutting Direction
Neutral
No. of Edges
6
Coating
TiCN/Al2O3/TiN
Material - Machining
Carbide
Manufacturer Grade
CA515
Finish - Machining
TiCN+Al2O3+TiN
Chip-Breaker Style
Double Sided
Features
Crack Resistant
Measurement System
Fractional Inch
Insert Holding Type
Straight Hole
Chip-Breaker Code
XQ
Shape
Trigon
Coating Process
CVD
ANSI Code
WNMG432XQ CA515
Cutting Application
Turning
Number of Cutting Edges
6
Included Angle
80 Degrees
Primary Material Application ISO Code
P
Clearance Angle
0 Degrees
Primary Material Application
Steel
Material
Carbide

Description

Turning Insert, Chip-Breaker Code XQ, Inscribed Circle 1/2 in, TiCN+Al2O3+TiN
