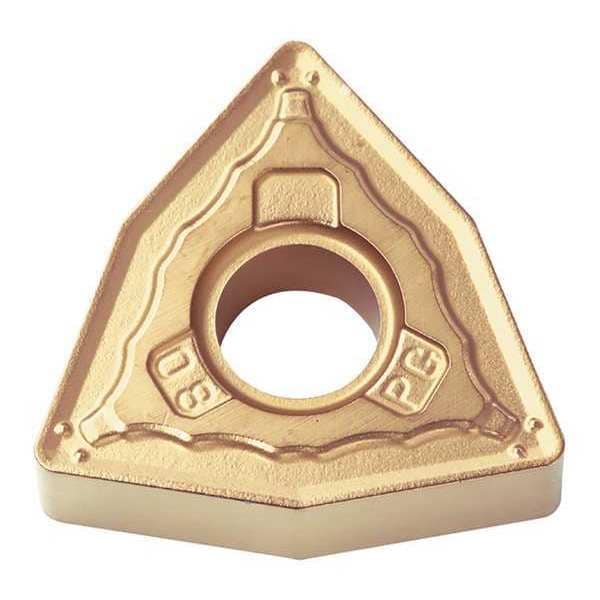

Kyocera Turning Insert, Trigon, 4, WNMG, 3, Carbide WNMG433PG CA515 - main

Turning Insert, Trigon, 4, WNMG, 3, Carbide

  • Mfr # WNMG433PG CA515

  • Zoro # G7386246

product price: $10.69
/ea
Sold in multiples of 10 for $106.90

Key Features

Insert Shape
Trigon
Insert Style
WNMG
Inscribed Circle
4
Insert Size
433
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
WNMG433PG CA515
Zoro #
G7386246
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
433
Corner Radius
3
Insert Thickness
0.1875"
Nose Radius
0.0469"
Mounting Hole Dia.
0.203"
Through Hole Inside Dia.
0.2031 in
Thickness
3

Details

Item
Turning Insert
Insert Shape
Trigon
Insert Style
WNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
CA515
Insert Material
Carbide
Insert Application
Medium
Rake
Negative
ISO Number
WNMG080412PG
Stainless (M) Compatibility
No
Hardened (H) Compatibility
No
Steel (P) Compatibility
Yes
Super Alloy (S) Compatibility
No
Workpiece Compatibility
Steel (P)
Cast Iron (K) Compatibility
No
Relief Angle
0 Degrees
Mounting Style
Clamp
For Use With
Toolholders, Boring Bars
Coating
TiCN/Al2O3/TiN
ANSI Number
WNMG433PG-CA515
No. of Edges
6
Cutting Direction
Neutral
Non Ferrous (N) Compatibility
No
Coating Process
CVD
Shape
Trigon
Finish - Machining
TiCN+Al2O3+TiN
Primary Material Application
Steel
Primary Material Application ISO Code
P
Number of Cutting Edges
6
Included Angle
80 Degrees
Features
Crack Resistant
Measurement System
Fractional Inch
Clearance Angle
0 Degrees
Insert Holding Type
Straight Hole
Cutting Application
Turning
Manufacturer Grade
CA515
Feed Type
High
Chip-Breaker Style
Double Sided
Material - Machining
Carbide
ANSI Code
WNMG433PG CA515
Chip-Breaker Code
PG
Material
Carbide

Description

Turning Insert, Chip-Breaker Code PG, Inscribed Circle 1/2 in, TiCN+Al2O3+TiN
