  11. Turning Insert, Trigon, 4, WNMG, 3, Carbide

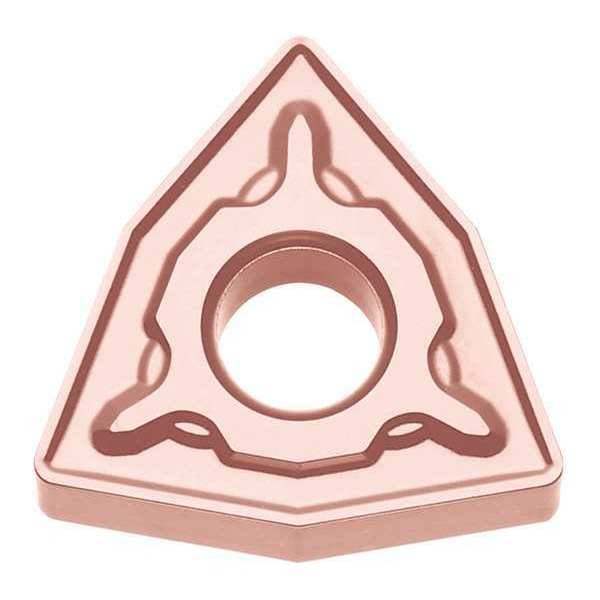

Kyocera Turning Insert, Trigon, 4, WNMG, 3, Carbide WNMG433PHCA310 - main

Turning Insert, Trigon, 4, WNMG, 3, Carbide

  • Mfr # WNMG433PHCA310

  • Zoro # G7386395

product price: $10.19
/ea
Sold in multiples of 10 for $101.90

Key Features

Insert Shape
Trigon
Insert Style
WNMG
Inscribed Circle
4
Insert Size
433
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WNMG433PHCA310
Zoro #
G7386395
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
433
Corner Radius
3
Nose Radius
0.0469"
Insert Thickness
0.1875"
Mounting Hole Dia.
0.203"
Thickness
3
Through Hole Inside Dia.
0.2031 in

Details

Item
Turning Insert
Insert Shape
Trigon
Insert Style
WNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
CA310
Insert Material
Carbide
Insert Application
Roughing
Rake
Negative
ISO Number
WNMG080412PH
Coating
TiCN/Al2O3
Relief Angle
0 Degrees
Non Ferrous (N) Compatibility
No
Cast Iron (K) Compatibility
Yes
Steel (P) Compatibility
No
For Use With
Toolholders, Boring Bars
Stainless (M) Compatibility
No
Cutting Direction
Neutral
Workpiece Compatibility
Cast Iron (K)
ANSI Number
WNMG433PH-CA310
Super Alloy (S) Compatibility
No
Mounting Style
Clamp
Hardened (H) Compatibility
No
No. of Edges
6
Clearance Angle
0 Degrees
Material - Machining
Carbide
Coating Process
CVD
Measurement System
Fractional Inch
Cutting Application
Turning
Chip-Breaker Style
Double Sided
Chip-Breaker Code
PH
Number of Cutting Edges
6
Primary Material Application
Cast Iron
Manufacturer Grade
CA310
ANSI Code
WNMG433PHCA310
Shape
Trigon
Included Angle
80 Degrees
Primary Material Application ISO Code
K
Insert Holding Type
Straight Hole
Features
Crack Resistant
Secondary Material Application
Cast Iron
Finish - Machining
TiCN+Al2O3+TiN
Secondary Material Application ISO Code
K
Material
Carbide

Description

Turning Insert, Chip-Breaker Code PH, Inscribed Circle 1/2 in, TiCN+Al2O3+TiN
