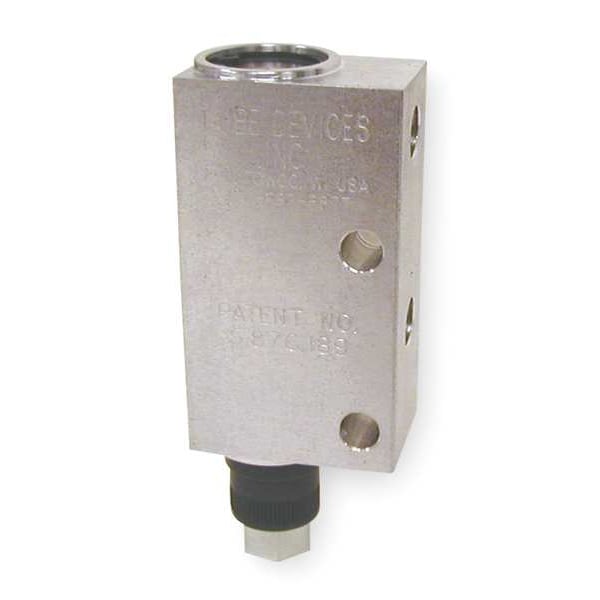

Precision Metering Pump, Air, 2 Feed
Mfr # PMP100-02
Zoro # G2713487
product price:Â
$
568.99
/ea
Free Shipping & Returns
Key Features
Air Inlet Pressure
25 to 125 psi
Application
Lubricating Moving Machinery Parts
For Use With
Mfr. No. 832160 or 833380, R110-08F or R112-08F and GR168 or GCA200
Air Inlet
1/8 in NPT
Features
Volume Adjustment, Each Feed Pump Is Independantly and Externally Adjustable Using a Micrometer Thread 0.02 Pitch Adjustment
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- PMP100-02
- Zoro #
- G2713487
- UPC #
- -
- Country of Origin
- United States
- Item
- Precision Metering Lubrication Pump
- Air Inlet Pressure
- 25 to 125 psi
- Application
- Lubricating Moving Machinery Parts
- For Use With
- Mfr. No. 832160 or 833380, R110-08F or R112-08F and GR168 or GCA200
- Air Inlet
- 1/8 in NPT
- Features
- Volume Adjustment, Each Feed Pump Is Independantly and Externally Adjustable Using a Micrometer Thread 0.02 Pitch Adjustment
- Material
- Acrylic, Aluminum, Brass, Buna/Viton Seals, Steel
- Pump Ratio
- 9:0
- Number of Feeds
- 2
- Operation
- Air-Operated
- Output
- 0 to 0.012 cu in/cycle/feed
- Max. Output Pressure
- 250 psi
- Interval Time Between Cycles
- 0.03 min
- Lubrication Type
- Grease, Oil
- Seal Material
- Buna-N, Viton
- Body Material
- Acrylic, Aluminum, Brass, Steel
- Air Intake Connection Type
- NPTF
- Connection Type
- NPT
- Air Intake Pressure - Maximum
- 125 psig
- Output Volume - Maximum
- 0.01 cu in
- Air Intake Pressure - Minimum
- 25 psig
- Operating Temperature - Maximum
- 120 Degrees F
- Discharge Pressure - Maximum
- 250 psi
Description
Precision Metering Lubrication Pump, Pump Ratio 9:0, Number of Feeds 2, Lubrication Type Grease, Oil, Connection Size 1/8 in, Connection Type NPT, Output Volume - Maximum 0.01 cu in, Discharge Pressure - Maximum 250 psi, Interval Time Between Cycles 0.03 min, Air Intake Pressure - Minimum 25 psig, Air Intake Pressure - Maximum 125 psig, Air Intake Connection Size 1/8 in, Air Intake Connection Type NPTF, Body Material Acrylic, Aluminum, Brass, Steel, Operating Temperature - Maximum 120 Degrees F
