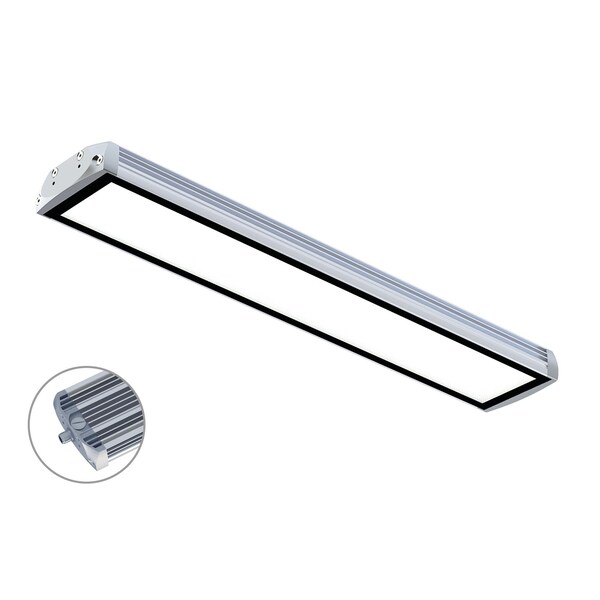

FIELDLED EVO 1040 96 Surface, 1040 mm 40, 94'', 24V DC, M12-A Front Side
Mfr # 153310-01
Zoro # G314643150
product price:Â $801.99
/ea
Free Shipping & Returns
Key Features
Voltage
24V DC ± 10%
Watts
~78 W
Lumens
12000 lm
Standards
CE, UKCA, ETL Listed (5003529)
Dimmable
Optional via accessories
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 153310-01
- Zoro #
- G314643150
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Overall Length
- 1040 mm (~40.94")
- Size
- 30 mm x 96 mm (~1.18" x ~3.78")
Details
- Voltage
- 24V DC ± 10%
- Watts
- ~78 W
- Lumens
- 12000 lm
- Standards
- CE, UKCA, ETL Listed (5003529)
- Dimmable
- Optional via accessories
- Tube Material
- Aluminum
- Average Life
- > 60.000 h (L80/B10)
- Mounting Type
- LED surface-mounted light for machines
- Color Temperature
- Daylight white (5200 - 5700K)
- Special Features
- Very Bright LED surface-mounted flat panel light for machines
- IP Rating
- IP67/IP69K
- Cascadable
- No
- Color Rendering (Ra)
- >85
- Mounting Accessories
- Two continuous screw channels for metric screws with thread M5 on the reverse
- Beam Angle
- 100°
- Energy Efficiency
- 155-lm/W
- Class of Protection
- III
- Cover Material
- ESG (toughened safety glass), shatterproof
- Connection
- M12 A-coded, end face
- Model
- FIELDLED EVO Surface
- Operating Temperature
- -30 °C to +60 °C (-22 °F to 140 °F)
- Glare Control
- Microprisms
Description
LED machine light FIELDLED EVO structure in a width of 96 mm and a length of 1040 mm. The connection via M12 connector A-coded is located on the side of the front of the light.FIELDLED EVO surface-mounted is a very bright LED machine luminaire for homogeneous, flicker-free and glare-free illumination of large-volume systems and machines. The machine luminaire is preferably used in harsh environments, such as in metal cutting. Safety glass, a metal housing and high-quality seals protect against chips and coolant. The FIELDLED EVO can be easily retrofitted in almost any machine tool. The light is mounted via screw channels on the back and connected to 24V DC via a reverse polarity protected M12 connector. Optionally, there are further light holders available. Depending on the version, the connection is located at the rear or at the front of the FIELDLED EVO. The surface-mounted version of the FIELDLED EVO LED machine luminaire is available in two widths of 96 mm and 150 mm and in six different lengths.
