FIELDLED EVO 1040 96 Surface, 1040 mm 40, 94'', 24V DC, M12-A Rear Side
Mfr # 153310-02
Zoro # G814643155
product price:Â
$
801.99
/ea
Free Shipping & Returns
Key Features
Voltage
24V DC ± 10%
Watts
~78 W
Lumens
12000 lm
Overall Length
1040 mm (~40.94")
Tube Material
Aluminum
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 153310-02
- Zoro #
- G814643155
- UPC #
- -
- Country of Origin
- Germany
- Voltage
- 24V DC ± 10%
- Watts
- ~78 W
- Lumens
- 12000 lm
- Tube Material
- Aluminum
- Mounting Type
- LED surface-mounted light for machines
- Color Temperature
- Daylight white (5200 - 5700K)
- Standards
- CE, UKCA, ETL Listed (5003529)
- IP Rating
- IP67/IP69K
- Special Features
- Very Bright LED surface-mounted flat panel light for machines
- Average Life
- > 60.000 h (L80/B10)
- Dimmable
- Optional via accessories
- Class of Protection
- III
- Operating Temperature
- -30 °C to +60 °C (-22 °F to 140 °F)
- Energy Efficiency
- 155-lm/W
- Color Rendering (Ra)
- >85
- Cover Material
- ESG (toughened safety glass), shatterproof
- Mounting Accessories
- Two continuous screw channels for metric screws with thread M5 on the reverse
- Beam Angle
- 100°
- Model
- FIELDLED EVO Surface
- Cascadable
- No
- Connection
- M12 A-coded, rear side
- Glare Control
- Microprisms
Description

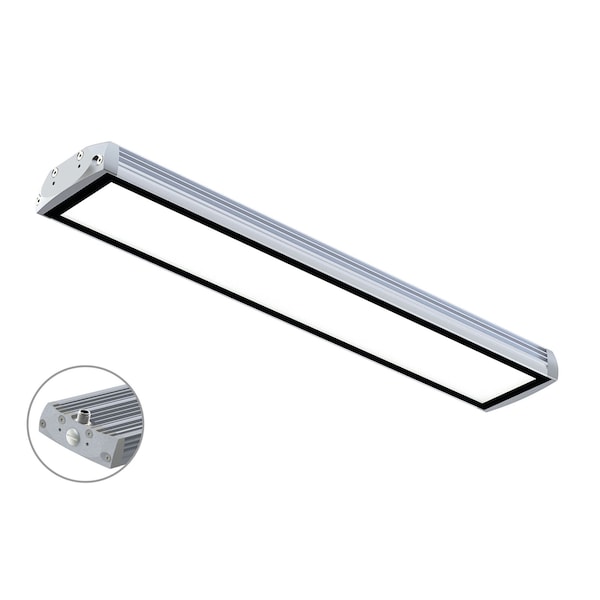

LED machine light FIELDLED EVO structure in a width of 96 mm and a length of 1040 mm. The connection via M12 connector A-coded is located at the rear of the luminaire housing.FIELDLED EVO surface-mounted is a very bright LED machine luminaire for homogeneous, flicker-free and glare-free illumination of large-volume systems and machines. The machine luminaire is preferably used in harsh environments, such as in metal cutting. Safety glass, a metal housing and high-quality seals protect against chips and coolant. The FIELDLED EVO can be easily retrofitted in almost any machine tool. The light is mounted via screw channels on the back and connected to 24V DC via a reverse polarity protected M12 connector. Optionally, there are further light holders available. Depending on the version, the connection is located at the rear or at the front of the FIELDLED EVO. The surface-mounted version of the FIELDLED EVO LED machine luminaire is available in two widths of 96 mm and 150 mm and in six different lengths.
