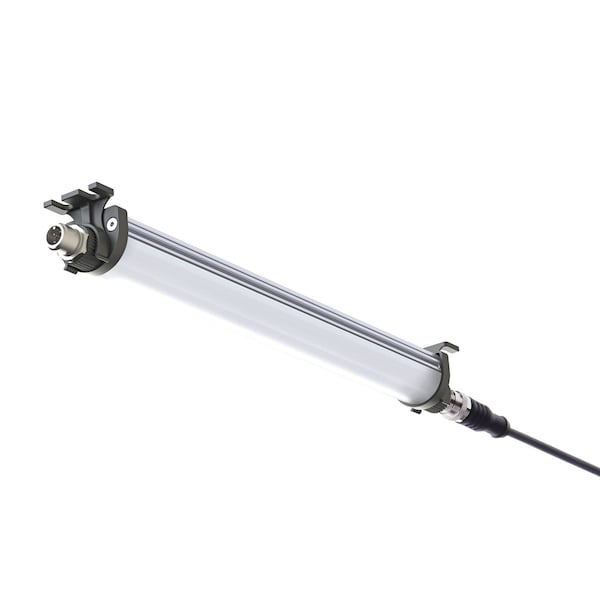

LEANLED II, 180 mm 7, 09'', opal white cover, cascadable
Mfr # 111010-31
Zoro # G314643259
product price: $123.99
/ea
Free Shipping & Returns
Key Features
Voltage
24V DC ± 10%
Watts
~4 W
Lumens
668 lm
IP Rating
IP54
Connection
M12 A-coded
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- 111010-31
- Zoro #
- G314643259
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Overall Length
- 180 mm (~7.09")
- Size
- 31 mm x 26 mm (~1.22" x ~1.02")
Details
- Voltage
- 24V DC ± 10%
- Watts
- ~4 W
- Lumens
- 668 lm
- IP Rating
- IP54
- Connection
- M12 A-coded
- Dimmable
- Optional via accessories
- Special Features
- Cascadable, Several Lights Can Be Interlinked Electrically
- Standards
- CE, UKCA, ETL Listed (5003529)
- Average Life
- > 60.000 h (L80/B10)
- Tube Material
- Aluminum
- Color Temperature
- Daylight white (5200 - 5700K)
- Mounting Type
- LED surface-mounted light
- Glare Control
- Opal White
- Color Rendering (Ra)
- >85
- Beam Angle
- 120°
- Class of Protection
- III
- Mounting Accessories
- 2 pairs mounting holders (holder for swivel or planar mounting) in delivery scope
- Energy Efficiency
- 155-lm/W
- Operating Temperature
- -10 °C to +60 °C (14 °F to 140 °F)
- Cascadable
- Yes
- Model
- LEANLED II
- Cover Material
- polycarbonate, soft
Description
LED surface mounted light for plants and machines, very slim, IP54, optics 120Deg, daylight white 5200 - 5700K, cover polycarbonate, soft, 24V DC ± 10%, M12 A-coded, cascadable.LEANLED II is a compact LED light bar for machines and equipment without chip shot and KSS. Thanks to its compact dimensions, the LED luminaire takes up very little space and can be mounted even when space is limited. An opal white polycarbonate cover protects the LED lamps from dust and splash water. With the latest generation LED chips, the luminaire provides flicker-free, uniform illumination. The light diffused by the milky opal white cover creates homogeneous illumination without shadows.Scope of delivery: 1x LED light strip, 1 pair of light holders for flat mounting, 1 pair of light holders for swivel mounting 360Deg.
