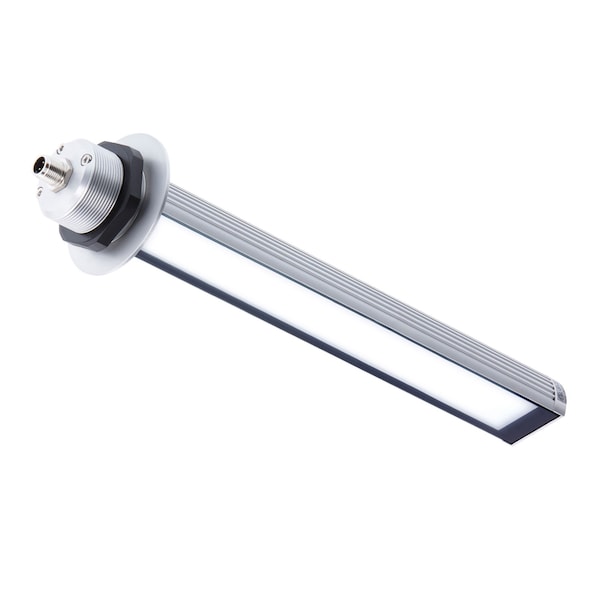

TUBELED 40 II ECO, 309 mm 12, 17'', male threaded M40x1.5
Mfr # 118110-04
Zoro # G314643211
product price: $290.99
/ea
Free Shipping & Returns
Key Features
Voltage
24V DC ± 10%
Watts
~6 W
Lumens
1000 lm
Special Features
Resistant To High Temperatures, Mounting In >40 Mm
Tube Material
Aluminum
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 118110-04
- Zoro #
- G314643211
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Overall Length
- 309 mm (~12.17")
- Size
- 29 mm x 40 mm (~1.14" x ~1.57") | + Ø 70 mm (~2.76")
Details
- Voltage
- 24V DC ± 10%
- Watts
- ~6 W
- Lumens
- 1000 lm
- Special Features
- Resistant To High Temperatures, Mounting In >40 Mm
- Tube Material
- Aluminum
- Mounting Type
- LED surface-mounted light for machines
- Color Temperature
- Daylight white (5200 - 5700K)
- IP Rating
- IP67/IP69K
- Average Life
- > 60.000 h (L80/B10)
- Dimmable
- Optional via accessories
- Standards
- CE, UKCA, ETL Listed (5003526)
- Beam Angle
- 100°
- Glare Control
- Diffused Safety Glass
- Connection
- M12 A-coded
- Energy Efficiency
- ~155 lm/W
- Operating Temperature
- -30 °C to +70 °C (-22 °F to 158 °F)
- Color Rendering (Ra)
- >85
- Model
- TUBELED_40 II M40x1.5
- Mounting Accessories
- Fastening via M40x1.5
- Cascadable
- No
- Class of Protection
- III
- Cover Material
- Safety glass, 4 mm (0,16")
Description
TUBELED_40 II M40 x 1.5 thread LED machine luminaire, bright, daylight white, length 309 mm, fastening via M40 thread, as ECO or Power version, IP 67/IP69K, oil-resistant, chip-proof, suitable for CNC.The new generation of LED machine lights as a version with M40 x 1.5: oil-resistant and resistant to coolants and lubricants, high temperature resistance, chip-proof tempered glass and the associated high degree of protection make this machine light the first choice for lighting in machines. The luminaire can be easily mounted in the machine enclosure via a round recess and the M40 thread. Recommended for original equipment or retrofitting!
