LEANLED II, 260 mm 10, 24'', clear cover, cascadable
Mfr # 111010-22
Zoro # G814643094
product price: $143.99
/ea
Free Shipping & Returns
Key Features
Voltage
24V DC ± 10%
Watts
~6 W
Lumens
1000 lm
Color Temperature
Daylight white (5200 - 5700K)
Overall Length
260 mm (~10.24")
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 111010-22
- Zoro #
- G814643094
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Overall Length
- 260 mm (~10.24")
- Size
- 31 mm x 26 mm (~1.22" x ~1.02")
Details
- Voltage
- 24V DC ± 10%
- Watts
- ~6 W
- Lumens
- 1000 lm
- Color Temperature
- Daylight white (5200 - 5700K)
- Mounting Type
- LED surface-mounted light
- Connection
- M12 A-coded
- Special Features
- Cascadable, Several Lights Can Be Interlinked Electrically. The Entire Lamp Luminous Flux May Not Exceed 4A DC
- Dimmable
- Optional via accessories
- Average Life
- > 60.000 h (L80/B10)
- Standards
- CE, UKCA, ETL Listed (5003529)
- IP Rating
- IP54
- Tube Material
- Aluminum
- Operating Temperature
- -10 °C to +60 °C (14 °F to 140 °F)
- Cascadable
- Yes
- Cover Material
- polycarbonate, clear, shatterproof
- Model
- LEANLED II
- Beam Angle
- 120°
- Mounting Accessories
- 2 pairs mounting holders (holder for swivel or planar mounting) in delivery scope
- Energy Efficiency
- 155-lm/W
- Class of Protection
- III
- Color Rendering (Ra)
- >85
Description

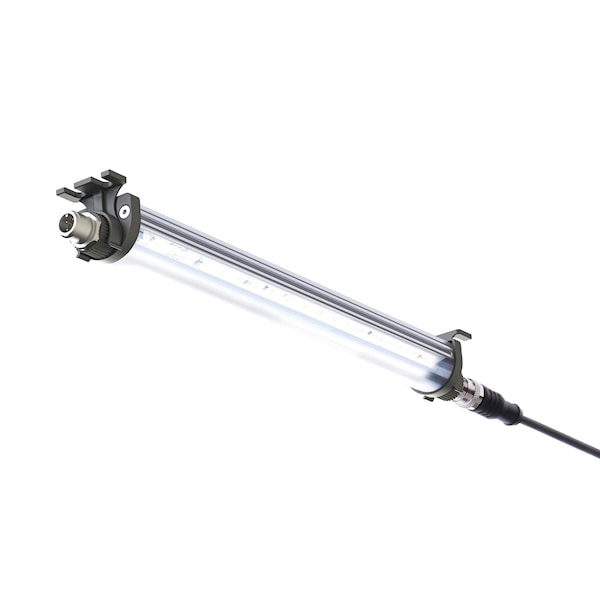

LED surface mounted light for plants and machines, very slim, IP54, optics 120Deg, daylight white 5200 - 5700K, cover polycarbonate, clear, shatterproof, 24V DC ± 10%, M12 A-coded, cascadable.LEANLED II is a compact LED light strip for machines and systems without chip coating and KSS. Thanks to its compact dimensions, the LED light builds up very little and can be mounted even when space is limited. The polycarbonate cover protects the LED lamps from dust and splash water. With the latest generation LED chips, the luminaire provides flicker-free, uniform illumination. The luminous flux passes through the crystal-clear cover unimpeded and work areas are illuminated with high illuminance. The LED luminaire can be cascaded with other LEANLED II luminaires, i.e. several luminaires can be electrically linked in series to form a light band.Scope of delivery: 1x LED light strip, 1 pair of light holders for flat mounting, 1 pair of light holders for swivel mounting 360Deg.
