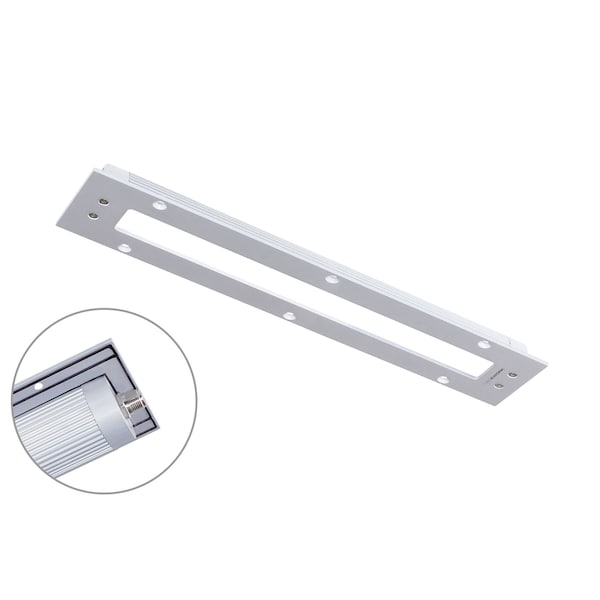

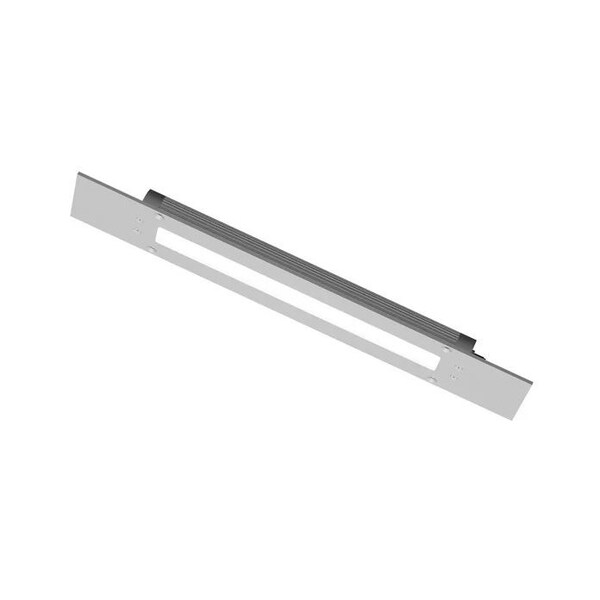

Recessed luminaire TUBELED 40 II integrated, 340 mm x 78 mm x 3 mm 13, 39'' x 3, 07'' x 0, 12''
Mfr # 152010-01
Zoro # G314643136
product price:Â
$
431.99
/ea
Free Shipping & Returns
Key Features
Voltage
24V DC ± 10%
Watts
~12 W
Dimmable
Optional via accessories
Color Temperature
Daylight white (5200 - 5700K)
Lumens
1899 lm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 152010-01
- Zoro #
- G314643136
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Nominal Size - Fixtures
- 32 mm x 78 mm (~1.26" x ~3.07"). aperture 3 mm (~0.12") built-up
- Length
- 340 mm (~13.39")
Details
- Voltage
- 24V DC ± 10%
- Watts
- ~12 W
- Dimmable
- Optional via accessories
- Color Temperature
- Daylight white (5200 - 5700K)
- Lumens
- 1899 lm
- Standards
- CE, UKCA, ETL Listed (5003529)
- Rated Life
- Greater than 60.000 hr (L80/B10)
- IP Rating
- IP67/IP69K
- Beam Angle
- 100°
- Material
- Aluminum
- Type
- LED recessed light
- Features
- Recessed LED Machine Light
- Cover Material
- Safety glass, 4 mm (0,16")
- Connection
- M12 A-coded
- Cascadable
- No
- Model
- TUBELED_40 II Integrated
- Glare Control
- Diffused safety glass
- Energy Efficiency
- ~155 lm/W
- Color Rendering (Ra)
- >85
- Class of Protection
- III
- Operating Temperature
- -30 °C to +60 °C (-22 °F to 140 °F)
Description
LED machine luminaire TUBELED_40 II integrated, recessed luminaire, luminous flux-optimized power version, daylight white, 340 mm x 78 mm cover and only 3 mm flat, IP 67/IP69K, oil-resistant, chip-proof, suitable for CNC Reinstalled version of the proven TUBELED_40 II machine luminaire: oil-resistant and resistant to coolants and lubricants, high temperature resistance, chip-proof tempered glass and the associated high degree of protection make the luminous flux-optimized luminaire the first choice for illuminating working areas in machines. The luminous flux-optimized luminaire is the first choice for illuminating working areas in machines. For recessed shafts for original equipment or retrofitting.
