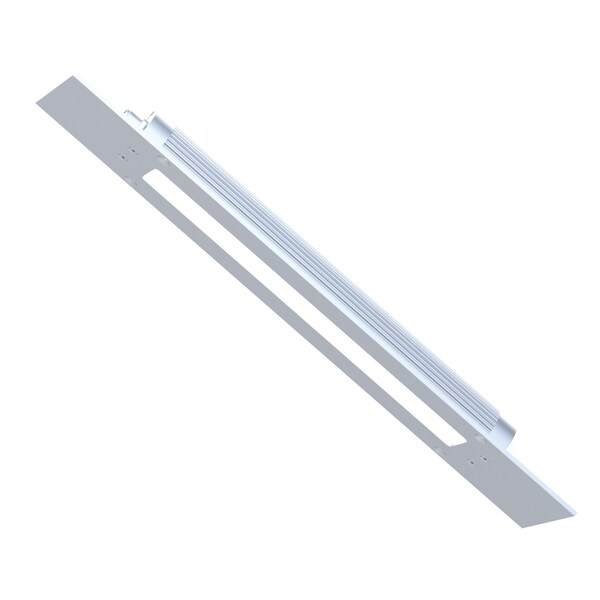

Recessed luminaire TUBELED 40 II Integrated, 395 mm x 74 mm x 3 mm 15, 55'' x 2, 91'' x 0, 12''
Mfr # 151110-03
Zoro # G014643283
product price:Â $412.99
/ea
Free Shipping & Returns
Key Features
Voltage
24V DC ± 10%
Watts
~12 W
Dimmable
Optional via accessories
Color Temperature
Daylight white (5200 - 5700K)
Lumens
1899 lm
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
151110-03
Zoro #
G014643283
UPC #
-
Country of Origin
Germany
Dimensions
Nominal Size - Fixtures
32 mm x 74 mm (~1.26" x ~2.91"). aperture 3 mm (~0.12") built-up
Length
395 mm (~15.55")
Details
Voltage
24V DC ± 10%
Watts
~12 W
Dimmable
Optional via accessories
Color Temperature
Daylight white (5200 - 5700K)
Lumens
1899 lm
Beam Angle
100°
Standards
CE, UKCA, ETL Listed (5003529)
Material
Aluminum
IP Rating
IP67/IP69K
Rated Life
> 60.000 h (L80/B10)
Features
Recessed LED Machine Light
Type
LED recessed light
Model
TUBELED_40 II Integrated
Cascadable
No
Connection
M12 A-coded
Operating Temperature
-30 °C to +60 °C (-22 °F to 140 °F)
Class of Protection
III
Color Rendering (Ra)
>85
Glare Control
Diffused safety glass
Energy Efficiency
~155 lm/W
Cover Material
Safety glass, 4 mm (0,16")
Description
LED machine light TUBELED_40 II Integrated, recessed luminaire, luminous flux optimized power version, Daylight white, length 395 mm 15,55'', 32 mm x 74 mm 1.26 x 2.91, aperture 3 mm 0.12 built-up, IP 67/IP69K, oil-resistant, chip-proof, CNC suitableRecessed version of the proven TUBELED_40 II machine luminaire: oil-resistant and resistant to coolants and lubricants, high temperature resistance, shatterproof tempered glass and the associated high degree of protection make the luminous flux-optimized luminaire the 1st choice for illuminating work areas in machines. For recessed shafts for original equipment or retrofitting.
