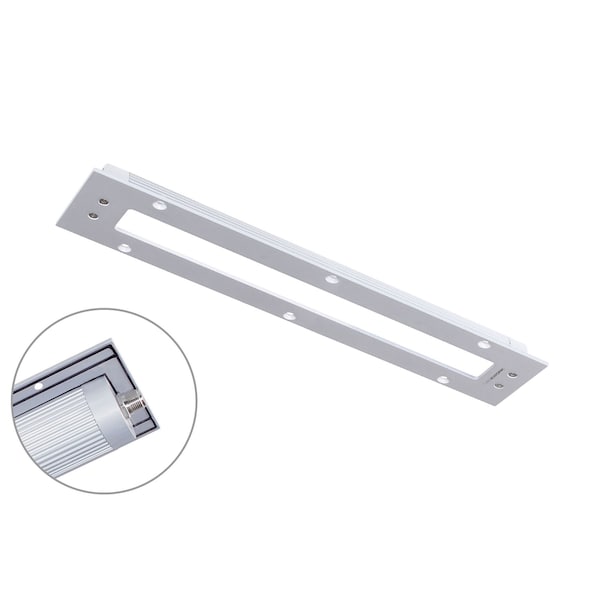

Recessed luminaire TUBELED 40 II Integrated, 570 mm x 74 mm x 3 mm 22, 44'' x 2, 91'' x 0, 12''
Mfr # 151210-01
Zoro # G914643284
product price:Â $503.99
/ea
Free Shipping & Returns
Key Features
Voltage
24V DC ± 10%
Watts
~24 W
Dimmable
Optional via accessories
Color Temperature
Daylight white (5200 - 5700K)
Lumens
3797 lm
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
151210-01
Zoro #
G914643284
UPC #
-
Country of Origin
Germany
Dimensions
Nominal Size - Fixtures
32 mm x 74 mm (~1.26" x ~2.91"). aperture 3 mm (~0.12") built-up
Length
570 mm (~22.44")
Details
Voltage
24V DC ± 10%
Watts
~24 W
Dimmable
Optional via accessories
Color Temperature
Daylight white (5200 - 5700K)
Lumens
3797 lm
Standards
CE, UKCA, ETL Listed (5003529)
Features
Recessed LED Machine Light
Rated Life
> 60.000 h (L80/B10)
Beam Angle
100°
Type
LED recessed light
IP Rating
IP67/IP69K
Material
Aluminum
Cover Material
Safety glass, 4 mm (0,16")
Class of Protection
III
Glare Control
Diffused safety glass
Operating Temperature
-30 °C to +60 °C (-22 °F to 140 °F)
Cascadable
No
Connection
M12 A-coded
Energy Efficiency
~155 lm/W
Color Rendering (Ra)
>85
Model
TUBELED_40 II Integrated
Description
LED machine luminaire TUBELED_40 II integrated, recessed luminaire, luminous flux-optimized power version, daylight white, 570 mm x 74 mm cover and only 3 mm flat, IP 67/IP69K, oil-resistant, chip-proof, suitable for CNC Reinstalled version of the proven TUBELED_40 II machine luminaire: oil-resistant and resistant to coolants and lubricants, high temperature resistance, chip-proof tempered glass and the associated high degree of protection make the luminous flux-optimized luminaire the first choice for illuminating working areas in machines. The luminous flux-optimized luminaire is the first choice for illuminating working areas in machines. For recessed shafts for original equipment or retrofitting.
