TUBELED 40 II Power, 715 mm 28, 15''
Mfr # 118410-01
Zoro # G614643096
product price:Â
$
364.99
/ea
Free Shipping & Returns
Key Features
Voltage
24V DC ± 10%
Watts
~32 W
Lumens
5062 lm
Overall Length
715 mm (~28.15")
Dimmable
Optional via accessories
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 118410-01
- Zoro #
- G614643096
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Overall Length
- 715 mm (~28.15")
- Size
- 29 mm x 40 mm (~1.14" x ~1.57")
Details
- Voltage
- 24V DC ± 10%
- Watts
- ~32 W
- Lumens
- 5062 lm
- Dimmable
- Optional via accessories
- Tube Material
- Aluminum
- Average Life
- > 60.000 h (L80/B10)
- Special Features
- High-Intensity, Power Version, Daylight White
- Mounting Type
- LED surface-mounted light for machines
- IP Rating
- IP67/IP69K
- Standards
- CE, UKCA, ETL Listed (5003529)
- Color Temperature
- Daylight white (5200 - 5700K)
- Glare Control
- Diffused Safety Glass
- Model
- TUBELED_40 II Power
- Energy Efficiency
- ~155 lm/W
- Class of Protection
- III
- Cover Material
- Safety glass, 4 mm (0,16")
- Connection
- M12 A-coded
- Cascadable
- No
- Beam Angle
- 100°
- Color Rendering (Ra)
- >85
- Operating Temperature
- -30 °C to +60 °C (-22 °F to 140 °F)
Description

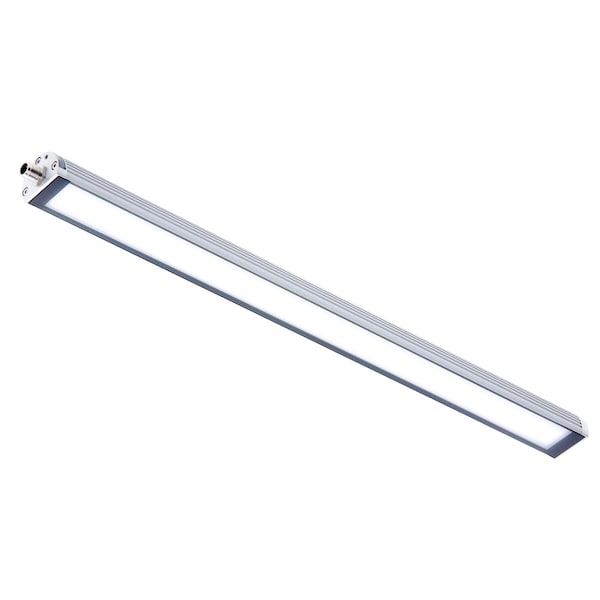

LED machine light TUBELED_40 II , high-intensity, power version, daylight white, only approx. 30 mm flat, IP 67/IP69K, oil-resistant, chip-proof, suitable for CNC.The new generation of LED machine lights: Flat design, oil-resistant and resistant to coolants and lubricants, high temperature resistance, shatterproof tempered glass and the associated high degree of protection make the luminous flux-optimized luminaire the 1st choice for illuminating work areas in machines. Recommended for original equipment or retrofitting!
