TUBELED 40 II ECO, 280 mm 11, 02''
- Mfr # 118110-02
- Zoro # G514643226
product price:Â
$
208.99
/ea
Free Shipping & Returns
Key Features
Voltage
24V DC ± 10%
Watts
~6 W
Lumens
1000 lm
Average Life
> 60.000 h (L80/B10)
Overall Length
280 mm (~11.02")
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 118110-02
- Zoro #
- G514643226
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Overall Length
- 280 mm (~11.02")
- Size
- 29 mm x 40 mm (~1.14" x ~1.57")
Details
- Voltage
- 24V DC ± 10%
- Watts
- ~6 W
- Lumens
- 1000 lm
- Average Life
- > 60.000 h (L80/B10)
- Dimmable
- Optional via accessories
- IP Rating
- IP67/IP69K
- Special Features
- Resistant To High Temperatures
- Standards
- CE, UKCA, ETL Listed (5003529)
- Color Temperature
- 5200 K to 5700 K
- Mounting Type
- LED surface-mounted light for machines
- Tube Material
- Aluminum
- Beam Angle
- 100°
- Cover Material
- Safety glass, 4 mm (0,16")
- Operating Temperature
- -30 °C to +70 °C (-22 °F to 158 °F)
- Class of Protection
- III
- Energy Efficiency
- ~155 lm/W
- Color Rendering (Ra)
- >85
- Cascadable
- No
- Model
- TUBELED_40 II ECO
- Glare Control
- Diffused Safety Glass
- Connection
- M12 A-coded
Description

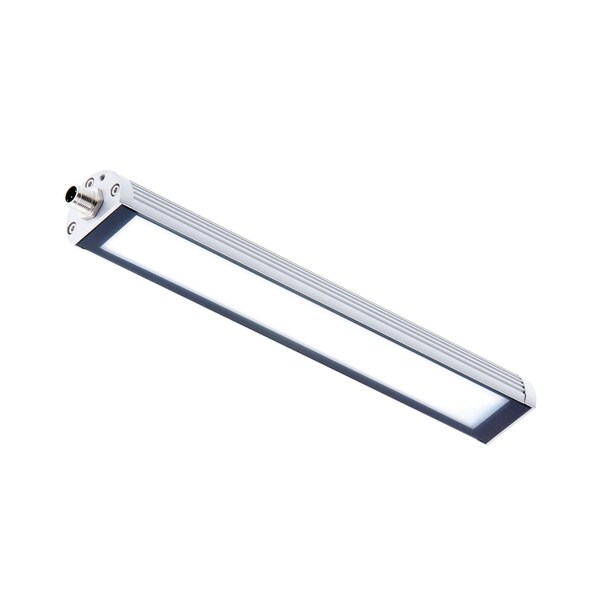

LED machine luminaire TUBELED_40 II, high-intensity, ECO version, Daylight white, only approx. 30 mm flat, IP 67/IP69K, oil-resistant, chip-proof, CNC suitable.The new generation of LED machine lights: Flat design, oil as well as coolant and lubricant resistance, high temperature resistance, crack-proof tempered glass and the associated high degree of protection make the performance-optimized luminaire the 1st choice for illuminating work areas in machines. Recommended for original equipment or retrofitting!
