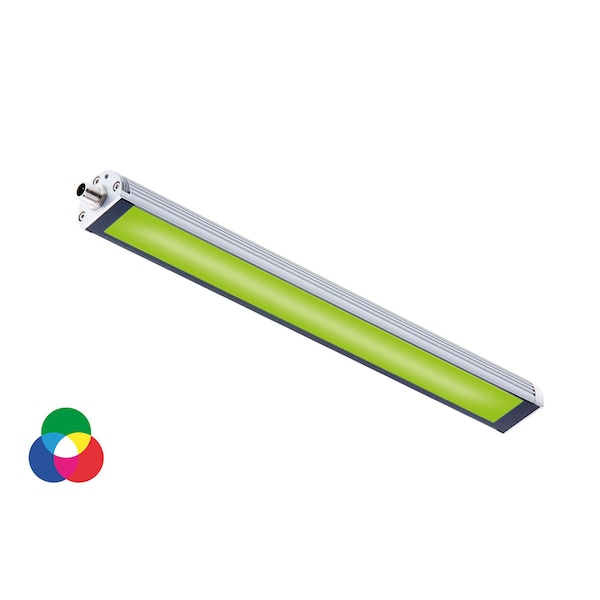

TUBELED 40 II RGB-W Power, 280 mm 11, 02'', 24V DC
- Mfr # 118190-01
- Zoro # G314643198
product price:Â
$
392.99
/ea
Free Shipping & Returns
Key Features
Voltage
24 V DC -10 %+7 % (RGB) – 24 V DC ±10 % (W)
Overall Length
280 mm (~11.02")
Standards
CE, UKCA, ETL Listed (5003529)
Mounting Type
LED surface-mounted light
Special Features
RGB-W: Illumination and beacon in one light
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 118190-01
- Zoro #
- G314643198
- UPC #
- -
- Country of Origin
- Germany
- Voltage
- 24 V DC -10 %+7 % (RGB) – 24 V DC ±10 % (W)
- Standards
- CE, UKCA, ETL Listed (5003529)
- Mounting Type
- LED surface-mounted light
- Special Features
- RGB-W: Illumination and beacon in one light
- IP Rating
- IP67/IP69K
- Average Life
- > 60.000 h (L80/B10)
- Tube Material
- Aluminum
- Connection
- M12 A-coded
- Lamp Luminous Flux White
- 1215 lm
- Power Consumption White
- ~9.5 W
- Lamp Luminous Efficiency White
- ~126 lm/W
- Model
- TUBELED_40 II RGB-W Power
- Operating Temperature
- -30 °C to +60 °C (-22 °F to 140 °F)
- Lamp Luminous Flux Blue
- 150 lm
- Beam Angle
- 100°
- Power Consumption Blue
- ~9 W
- Power Consumption Green
- ~2.5 W
- Lamp Luminous Flux Red
- 240 lm
- Class of Protection
- III
- Light Color White
- Daylight White (5200 - 5700K)
- Cascadable
- No
- Lamp Luminous Flux Green
- 345 lm
- Power Consumption Red
- ~9 W
Description
Robust and slim LED machine luminaire with signaling function, power-optimized power version, LED chips Daylight white + RGB LED chips, flat design, IP 67/IP69K, oil-resistant, chip-proof, CNC suitable.The LED hybrid luminaire for lighting and signaling is available as a power-optimized ECO version and as a luminous flux-optimized power version. The luminaire has a flat design only and is suitable for CNC. On the one hand, the luminaire convinces with powerful illumination of working areas and on the other hand, it has a signaling function by flashing or changing the light color. In this way, for example, changes of state in the working areas of machines and systems can be signaled in color.
