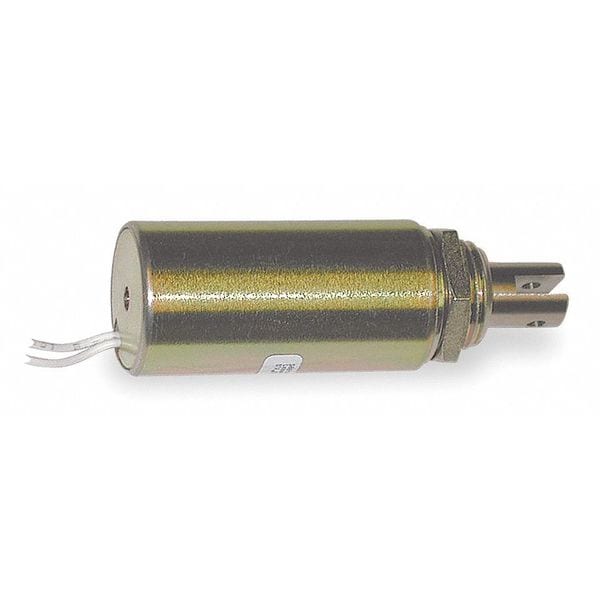

Solenoid, Tubulr, 1/16 - 5/8in, Intermittnt

LEDEX| Zoro #: G2369613| Mfr #: 195206-231

$24.16 /ea

Orders over $50.00 ship free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G2369613 Mfr #: 195206-231
Pull @ 1 In. Stroke: 5.0 oz.Pull @ 3/4 In. Stroke: 7.0 oz.
Pull @ 1/2 In. Stroke: 18.0 oz.Pull @ 5/8 In. Stroke: 10.0 oz.
Pull @ 1/4 In. Stroke: 35.0 oz.Pull @ 3/8 In. Stroke: 22.0 oz.
Pull @ 1/8 In. Stroke: 73.0 oz.Mounting Holes: -
Terminals: 10" LeadsBody Length: 2-7/16"
Dia.: 1"Seated Watts: 10
Solenoid Type: TubularGravity Value: 1.46 oz.
Coil Resistance: 77.4 ohmLength: 2-7/16"
Amps @ Max. Stroke: 0.36Coil Volts: 24VDC
Stroke Range: 1/16" to 5/8"Pull Force Range: 3.8 to 58.0 oz.
Seated Amps: 0.36Item: Solenoid
Duty Cycle: IntermittentCoil Insulation: Class A
Country of Origin (subject to change): United States

Product Description

Tubular Pull Solenoid, Dia 1 In, Body Length 2 7/16 In, Coil Volts 28 VDC, Seated Amps 0.36, Seated Watts 10.0, Coil Resistance 77.4 Ohms, Coil Insulation Class A, Amps @Max Stroke 0.36, Plunger Corrosion Resistant Steel with Nylon Cavity, Coil Insulation Material 6/6 Nylon, Zinc Chromate Plated Steel, Pull @1/4 In Stroke 16.0 Oz, @3/8 In Stroke 7.5 Oz, @1/2 In Stroke 5.9 Oz, @5/8 In Stroke 3.8 Oz, Terminals 10 In Leads, Duty Cycle Continuous @25 C, Includes Zinc Plated Mounting Nut
