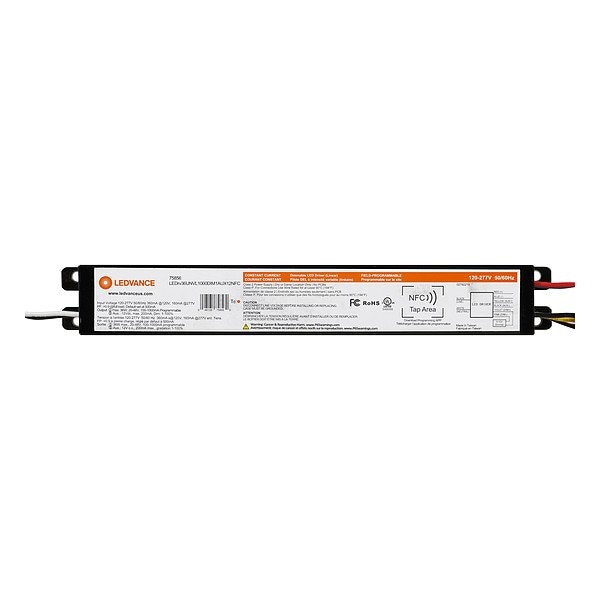

LEDDriver, NFC, 0-10V, 9-1/2in-L, 1PK

Mfr # LEDrv36UNVL1000DIM1AUX12NFC
Zoro # G315191476

76.35

Zoro's best price: not eligible for any other offers or promotions

Key Features

Environmental Rating

Damp Location

Length

9 1/2 in

Width

1 3/16 in

Height

1 1/8 in

Input Voltage

120 to 277V AC

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: LEDrv36UNVL1000DIM1AUX12NFC
Zoro #: G315191476
UPC #: 046135758560
Country of Origin: Taiwan, Province of China

Dimensions

Length: 9 1/2 in
Width: 1 3/16 in
Height: 1 1/8 in

Details

Item: LED Driver
Environmental Rating: Damp Location
Input Voltage: 120 to 277V AC
Output Current: 100 to 1,000 mA
Output Voltage: 20 to 48V DC
Brand and Series: NFC
Dimming Type: Full Continuous Dimming
Number of Bulbs Supported: 1
Case Form Factor: Linear
Power Output - Minimum: 36 W
Max. Ambient Temp.: 122 Degrees F
Total Harmonic Distortion: 20 %
Warranty: 5 yr
Output Technology: Programmable
Power Factor - Minimum: 0.9
Max. Case Temp.: 80 Degrees C
Min. Ambient Temp.: -22 Degrees F
Driver Class: Class 2
Frequency: 50/60 Hz
Ouput Constant: Constant Current
Programming Method: Software
Dimming Range: 100% to 1%
Standards: CA T-24, CFR, cUL class P, FCC, RoHS
LED Driver Protection: Over-Temperature Protection
Dimming Method: 0-10V
Power Output - Maximum: 36 W

Description

NFC, LED Driver, Number of Bulbs Supported 1, 120 to 277V AC Input Voltage, 20 to 48V DC Output Voltage, 100 to 1,000 mA Output Current, 9 1/2 in Length, 1 3/16 in Width, 1 1/8 in Height, Case Form Factor Linear, Class 2
