Shop LEDVANCE/ SYLVANIA

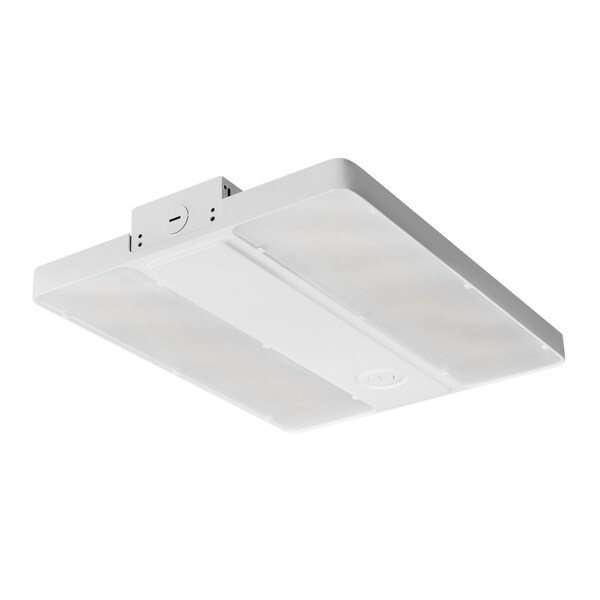

LinearHghBay, Wht, ValuClss, 143/16inL

  • Mfr # LNHIBA6A/130UNHD840/11W/WH
  • Zoro # G816295925
product price:
$
152.99
/ea
Free Shipping & Returns

Key Features

Lumens
17600
Fixture Voltage
120V
Color Temperature
4000K
Standards
cULus
Max. Fixture Wattage
130 W
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LNHIBA6A/130UNHD840/11W/WH
Zoro #
G816295925
UPC #
046135631146
Country of Origin
Viet Nam

Dimensions

Height
1.89 in
Nominal Length
14 3/16 in
Length
14 3/16 in
Width
11.02 in
Suggested Mounting Height - Minimum
39 ft
Overall Width
11 in
Suggested Mounting Height - Maximum
49 ft
Nominal Width
11 in
Overall Length
14 3/16 in
Overall Height
2 in
Wire Rope Length
14 3/16 in

Details

Lumens
17600
Fixture Voltage
120V
Color Temperature
4000K
Standards
cULus
Max. Fixture Wattage
130 W
Item
Linear High Bay
Fixture Warranty
5 years
Fixture Temp. Range
-40 to 122
Fixutre Mounting Type
Suspended
Lumens Per Watt
135 lm/W
Power Factor
≥0.90
Light Color
White
Total Harmonic Distortion
< 20 %
Fixture Rated Life
100,000 hr
Features
Linear High Bay 6A, 130W, 120-347V, 0-10V Dimming, 80+ Cri, 4000K, Nominal 1' Wide By 1' Long, Wide Distribution Lens, White
Color Rendering Index
80
Service Life Rating
100000
Housing Material
Aluminum
Total Harmonic Distortion (THD)
< 20 %
Efficacy (LPW)
135 lm/W
CRI
> 80
Type
Linear High Bay
Light Output
17,600 lm
Light Distribution
Wide
Product Type
Linear High Bay
Series
Value Class
Rated Life
100,000 hr
Dimmable
Yes
Maximum Fixture Wattage
130 W
Linkable
Yes
Emergency Battery Backup
No
Bulbs Included
Yes
Lumen Selectable
Not Selectable
Hazardous Location Rating
Not Rated
Bay Light Type
High Bay
Includes
3 ft Mounting Chains, V-Hooks
Number of Bulbs
1
For Bulb Shape
Linear
LED Replacement For
250W MH
Lamp Type
LED
Color Selectable
Not Selectable
Mounting Style
Suspended
Temperature Code
T4A
Lens Material
Polycarbonate
For Bulb Type
LED
Housing Finish
Powder Coated
Ambient Temperature - Minimum
-40 Degrees F
Voltage
120 to 347V AC
Lighting Technology
LED
Ambient Temperature - Maximum
50 Degrees C
Housing Color
White

Description

Linear High Bay
