Shop LEDVANCE/ SYLVANIA

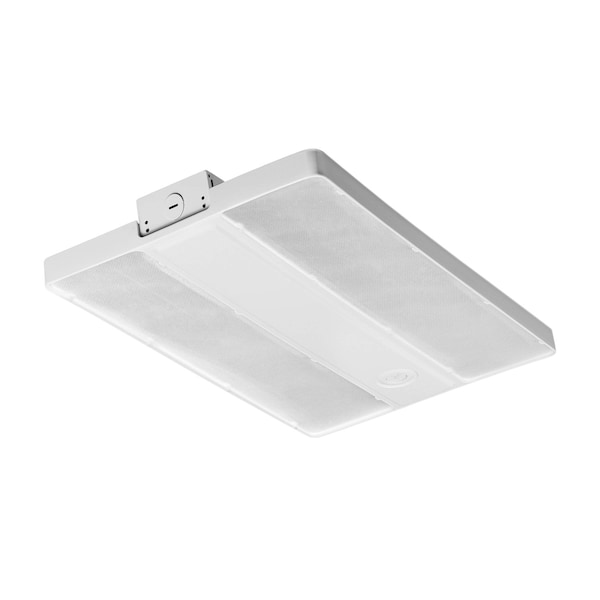

LinearHghBay, Wht, ValuClss, 181/8inL

  • Mfr # LNHIBA6A/155UNHD850/12W/WH

  • Zoro # G016295893

product price:
$
175.99
/ea
Free Shipping & Returns

Key Features

Lumens
21700
Color Temperature
5000
Standards
cULus
Max. Fixture Wattage
155 W
Color Rendering Index
80
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LNHIBA6A/155UNHD850/12W/WH
Zoro #
G016295893
UPC #
046135631177
Country of Origin
Viet Nam

Dimensions

Length
18 1/8 in
Dimensions
18.11x11.81x2.01 in
Height
2.01 in
Width
11.81 in
Nominal Length
18 1/8 in
Overall Height
2 in
Overall Width
11 13/16 in
Suggested Mounting Height - Minimum
39 ft
Suggested Mounting Height - Maximum
49 ft
Nominal Width
11 13/16 in
Overall Length
18 1/8 in
Wire Rope Length
18 1/8 in

Details

Lumens
21700
Fixture Voltage
120
Color Temperature
5000
Standards
cULus
Max. Fixture Wattage
155 W
Item
Linear High Bay
Color Rendering Index
80
Fixture Rated Life
100,000 hr
Total Harmonic Distortion (THD)
< 20 %
Service Life Rating
100000
Housing Material
Aluminum
Fixutre Mounting Type
Suspended
Type
Linear High Bay
Power Factor
0.9
Features
Linear High Bay 6A, 155W, 120-347V, 0-10V Dimming, 80 Cri, 5000K, 1X2, Wide Optics, White
Lumens Per Watt
140 lm/W
Operating Temperature (°C)
-40 to+50 °C
Light Color
White
Operating Temperature (°C)
-40 to+50 °C
Temperature Code
T4A
LED Replacement For
250W MH
Housing Color
White
Lamp Type
LED
Emergency Battery Backup
No
Rated Life
100,000 hr
Light Output
21,700 lm
Number of Bulbs
1
Ambient Temperature - Maximum
122 Degrees F
Hazardous Location Rating
Not Rated
Includes
3 ft Mounting Chains, V-Hooks
Product Type
Linear High Bay
Housing Finish
Powder Coated
Linkable
Yes
Mounting Style
Suspended
Dimmable
Yes
Ambient Temperature - Minimum
-40 Degrees F
Lens Material
Polycarbonate
For Bulb Shape
Linear
Light Distribution
Wide
Voltage
120 to 347V AC
Lumen Selectable
Not Selectable
For Bulb Type
LED
Bay Light Type
High Bay
Bulbs Included
Yes
Color Selectable
Not Selectable
Lighting Technology
LED
Series
Value Class
Maximum Fixture Wattage
155 W

Description

Linear High Bay 6A, 155W
