Shop LEDVANCE/ SYLVANIA

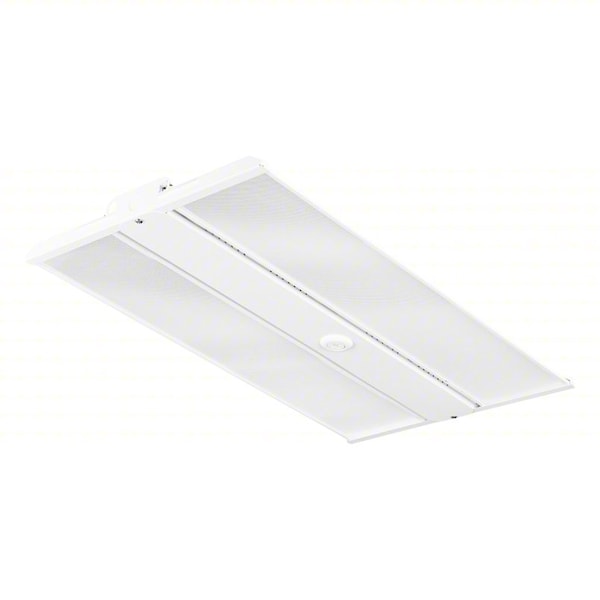

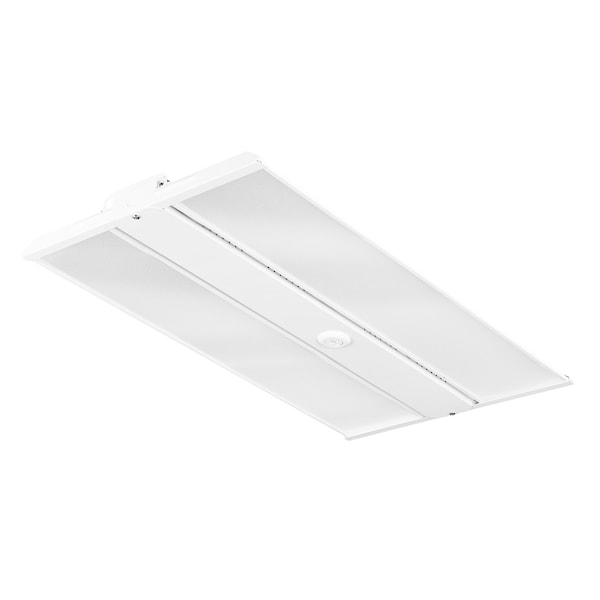

LinearHghBay, Wht, ValuClss, 24inL

  • Mfr # LNHIBA5A/S300UNVD8SC14/12/WH
  • Zoro # G716295872
product price:
$
368.99
/ea
Free Shipping & Returns

Key Features

Fixture Voltage
120V
Color Temperature
4000K, 5000K
Standards
cULus
Max. Fixture Wattage
300.00/275.00/255.00
Housing Material
Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LNHIBA5A/S300UNVD8SC14/12/WH
Zoro #
G716295872
UPC #
046135628771
Country of Origin
Viet Nam

Dimensions

Width
14.17 in
Dimensions
23.98x14.17x1.57 in
Nominal Length
24 in
Height
1.57 in
Nominal Width
14 3/16 in
Overall Width
14 3/16 in
Overall Height
1 5/8 in
Suggested Mounting Height - Minimum
39 ft
Overall Length
24 in
Suggested Mounting Height - Maximum
49 ft
Wire Rope Length
24 in
Length
24 in

Details

Lumens
41100/38700/36700
Fixture Voltage
120V
Color Temperature
4000K, 5000K
Standards
cULus
Max. Fixture Wattage
300.00/275.00/255.00
Item
Linear High Bay
Housing Material
Steel
Indoor/Outdoor Usage
Indoor
Fixture Rated Life
100,000 hr
Fixture Temp. Range
-22 to 122
Fixture Warranty
5 years
Efficacy (LPW)
135 lm/W
Type
V-hook with chain
Light Color
White
Power Factor
≥0.90
Total Harmonic Distortion
< 20 %
CRI
80
Fixutre Mounting Type
Suspended
Temperature Code
T4A
Series
Value Class
Mounting Style
Ceiling, Suspended
Dimmable
Yes
Voltage
120 to 277V AC
Light Distribution
General
Number of Bulbs
1
Color Rendering Index
80
Ambient Temperature - Maximum
122 Degrees F
LED Replacement For
750W to 1000W MH
Lens Material
Polycarbonate
Lighting Technology
LED
Maximum Fixture Wattage
300 W
Housing Color
White
Ambient Temperature - Minimum
-22 Degrees F
Lumen Selectable
Selectable
Bulbs Included
Yes
Hazardous Location Rating
Not Rated
Bay Light Type
High Bay
Includes
V-Hook with Chain
Product Type
Linear High Bay
Color Selectable
Selectable
Emergency Battery Backup
No
Lamp Type
LED
Linkable
Yes
Rated Life
100,000 hr
For Bulb Type
LED
For Bulb Shape
Linear

Description

Linear High Bay 5A
