Shop LEDVANCE/ SYLVANIA

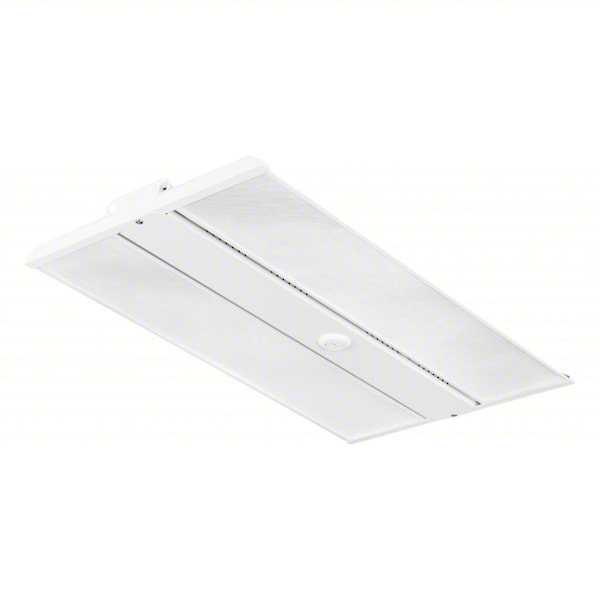

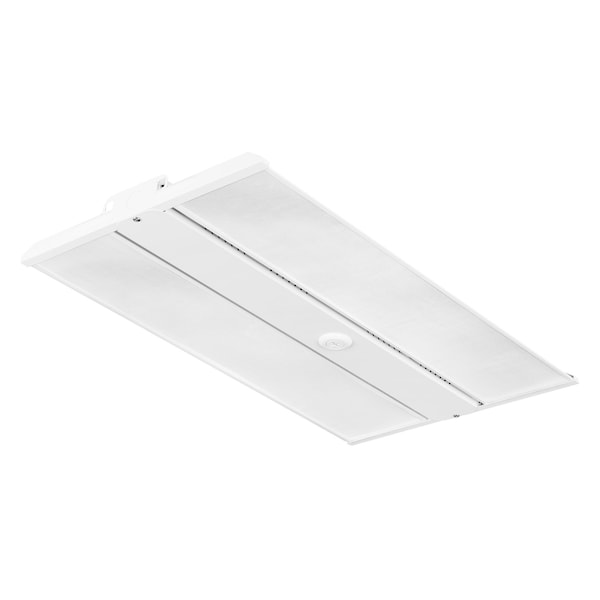

LinearHghBay, Wht, ValuClss, 24inL

  • Mfr # LNHIBA5A/S220UNVD8SC14/12/WH
  • Zoro # G516295874
product price:
$
272.99
/ea
Free Shipping & Returns

Key Features

Lumens
29000/26900/24400
Fixture Voltage
120 V
Color Temperature
4000K, 5000K
Standards
cULus, RoHS
Max. Fixture Wattage
220.00/195.00/175.00
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LNHIBA5A/S220UNVD8SC14/12/WH
Zoro #
G516295874
UPC #
046135628764
Country of Origin
Viet Nam

Dimensions

Nominal Length
24 in
Width
14.17 in
Dimensions
23.98x14.17x1.57 in
Height
1.57 in
Nominal Width
14 3/16 in
Overall Width
14 3/16 in
Overall Height
1 5/8 in
Suggested Mounting Height - Maximum
49 ft
Suggested Mounting Height - Minimum
39 ft
Overall Length
24 in
Wire Rope Length
24 in
Length
24 in

Details

Lumens
29000/26900/24400
Fixture Voltage
120 V
Color Temperature
4000K, 5000K
Standards
cULus, RoHS
Max. Fixture Wattage
220.00/195.00/175.00
Item
Linear High Bay
Efficacy (LPW)
135 lm/W
Housing Material
Steel
Fixture Rated Life
100,000 hr
Indoor/Outdoor Usage
Indoor
Power Factor
≥0.90
Type
V-hook with chain
Fixture Temp. Range
-22 to 122
CRI
80
Fixture Warranty
5 years
Fixutre Mounting Type
Suspended
Light Color
White
Total Harmonic Distortion
< 20 %
Linkable
Yes
Maximum Fixture Wattage
220 W
Lens Material
Polycarbonate
Series
Value Class
Bulbs Included
Yes
Voltage
120 to 277V AC
Includes
V-Hook with Chain
Ambient Temperature - Maximum
122 Degrees F
Color Rendering Index
80
Product Type
Linear High Bay
Bay Light Type
High Bay
Housing Color
White
Dimmable
Yes
Lamp Type
LED
Number of Bulbs
1
Mounting Style
Ceiling, Suspended
Temperature Code
T4A
For Bulb Shape
Linear
LED Replacement For
320W to 400W MH
Lumen Selectable
Selectable
Hazardous Location Rating
Not Rated
Lighting Technology
LED
Ambient Temperature - Minimum
-22 Degrees F
Emergency Battery Backup
No
Light Distribution
General
Rated Life
100,000 hr
For Bulb Type
LED
Color Selectable
Selectable

Description

Linear High Bay 5A
