Shop LEDVANCE/ SYLVANIA

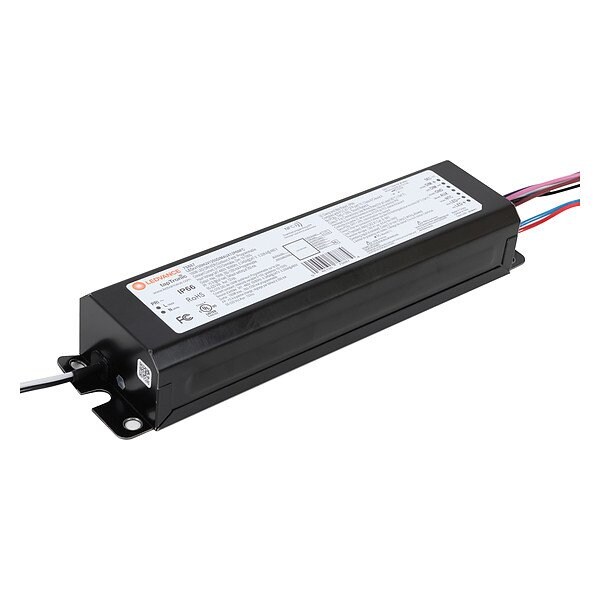

TapTronic Outdoor LED Driver, PK10

  • Mfr # LEDrv100HUV1250DIMAUX12P6NFC/ 75887

  • Zoro # G923367072

product price:  $103.99
Free Shipping & Returns

Key Features

Standards
cULus, FCC, RoHS
Output Current
1,250 mA
Power Output - Maximum
100 W
Brand and Series
TapTronic(TM) NFC
Output Technology
Programmable
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LEDrv100HUV1250DIMAUX12P6NFC/ 75887
Zoro #
G923367072
UPC #
0046135758874
Country of Origin
China

Dimensions

Length
9 1/2 in
Height
1 1/2 in
Width
2 3/8 in

Details

Standards
cULus, FCC, RoHS
Output Current
1,250 mA
Power Output - Maximum
100 W
Brand and Series
TapTronic(TM) NFC
Output Technology
Programmable
Dimming Range
100% to 10%
Frequency
50/60 Hz
LED Driver Protection
Over-Temperature Protection
Max. Ambient Temp.
122 Degrees F
Power Factor - Minimum
0.9
Min. Ambient Temp.
-40 Degrees F
Input Voltage
347 to 480V AC
Programming Method
Programming Tool
Environmental Rating
Damp Location, Wet Location
Warranty
5 yr
Item
TapTronic Outdoor LED Driver
Driver Class
Class 2
Max. Case Temp.
194 Degrees F
Output Voltage
50 to 185V DC
Dimming Method
0-10V
Total Harmonic Distortion
20 %
Ouput Constant
Constant Current

Description

TapTronic(TM) NFC, TapTronic Outdoor LED Driver, Number of Bulbs Supported Not Applicable, 347 to 480V AC Input Voltage, 50 to 185V DC Output Voltage, 1,250 mA Output Current, 9 1/2 in Length, 2 3/8 in Width, 1 1/2 in Height, Class 2, Package Quantity 1
