Shop LEDVANCE/ SYLVANIA

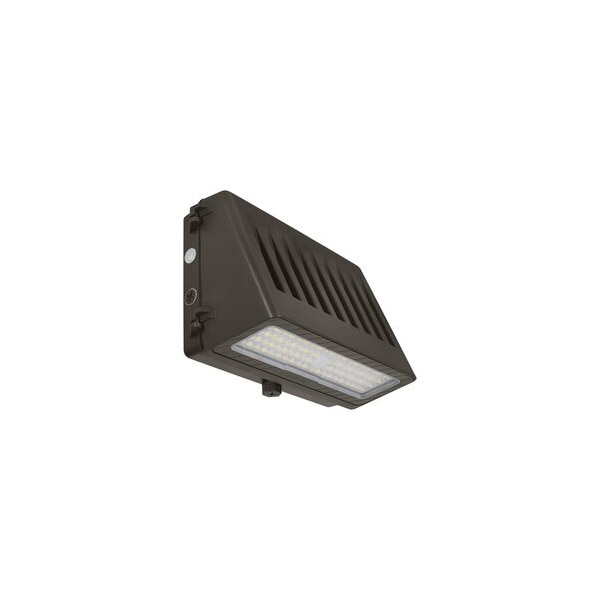

Wall Packs, LED, Surface Mount

  • Mfr # WALPAKC9AS035UNHD8SC2BZP

  • Zoro # G716065956

product price:
$
123.99
/ea
Free Shipping & Returns

Key Features

Features
Wall Pack Cutoff 9A, Selectable Wattage 20/30/35W, 120-347V, 0-10V Dimming, 80 Cri, Cct Selectable 3000/4000/5000K, Bronze, Photocell
Voltage
120 to 347V AC
Width
7.4 in
Height
9.40 in
Length
14 3/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
WALPAKC9AS035UNHD8SC2BZP
Zoro #
G716065956
UPC #
046135658563
Country of Origin
Viet Nam
Item
Wall Packs
Features
Wall Pack Cutoff 9A, Selectable Wattage 20/30/35W, 120-347V, 0-10V Dimming, 80 Cri, Cct Selectable 3000/4000/5000K, Bronze, Photocell
Voltage
120 to 347V AC
Series
WALPAKC
Light Technology
LED
Watts
20.00/30.00/35.00 W
Lumens
3000/4500/5250
Finish
Bronze
Housing Material
Aluminum
Fixture Lens Material
Polycarbonate
Color Temperature
3000K, 4000K, 5000K
Standards
cULus, FCC, RoHS
Rated Life
100,000 hr
IP Rating
IP65
Power Source
Hardwired
Fixture Wattage
35 W
Color Rendering Index
80
Operating Temperature - Minimum
-40 Degrees F
Housing Color
Bronze
Sensor Type
Photocell Included
Includes Lamp
Integrated
Operating Temperature - Maximum
122 Degrees F
Lumen Selectable
Selectable
For Location
Outdoor
Color Selectable
Selectable
Number of Knockouts
4
Mount Type
Surface
Light Distribution Type - IESNA
Type III
Metal Halide Wattage Equivalency
75 W
Light Output
3,000 lm, 4,500 lm, 5,250 lm
Number of Hubs
0
High Pressure Sodium Wattage Equivalency
75 W
Incandescent Wattage Equivalency
200 W
Mounting
Surface
Power Factor
≥0.90
Lamp Type
SMD
Fixture Rated Life
100,000 hr
Total Harmonic Distortion
< 20 %
Efficacy (LPW)
150 lm/W
CRI
80
Type
Wall pack
Operating Temp. Range
-40 °F to 122°F
Light Distribution
< 20 %
Operating Temperature (°C)
-40 to+50 °C
Lumens Per Watt
150 lm/W
Application
Outdoor
Operating Temperature (°C)
-40 to+50 °C
Power Source - TS Only
Hardwired
Power Source - old
Hardwired

Description

Wall Packs, Fixture Wattage 35 W, Voltage 120 to 347V AC, Light Technology LED, Color Temperature 3000K, 4000K, 5000K, Color Rendering Index 80, Includes Lamp Integrated, Rated Life 100,000 hr, Fixture Lens Material Polycarbonate, IP Rating IP65, Standards cULus, FCC, RoHS
