Shop LEESON

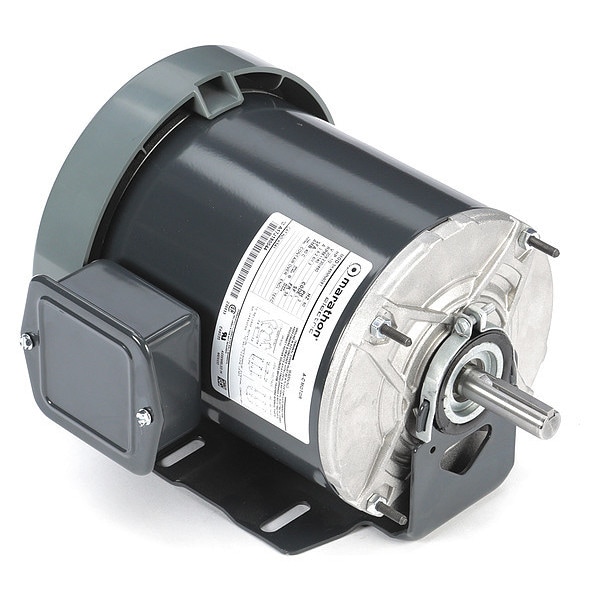

3-Phase Belt Drive Motor, 1/2 HP, 56 Frame, 208-230/460V AC Voltage, 1,140 Nameplate RPM

  • Mfr # 5K49MN6081

  • Zoro # G0352429

product price:
$
554.99
/ea
Free Shipping & Returns

Key Features

Motor Design
3-Phase
Motor Enclosure Design
Totally Enclosed Fan-Cooled
HP
1/2
No. of Speeds
1
RPM Range
1,101-1,200
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
5K49MN6081
Zoro #
G0352429
UPC #
-
Country of Origin
Mexico
Item
Belt Drive Motor
Motor Design
3-Phase
Motor Enclosure Design
Totally Enclosed Fan-Cooled
HP
1/2
No. of Speeds
1
RPM Range
1,101-1,200
Nameplate RPM
1,140
Voltage
208-230/460V AC
Frame
56
Motor Mounting Type
Cradle Base
Motor Thermal Protection
None
Motor Service Factor
1
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Phase
Three
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Mounting Stud Pattern
4-3/16 in x 4-3/16 in
Motor Mounting Position
Horizontal
Full Load Amps
2.6-2.6,1.3 A
Motor Shaft Design
Keyed
Nominal Efficiency
72 %
Max. Ambient Temp.
104 Degrees F
Duty
Continuous
Motor Bearings
Ball
Ins. Class
B
Motor Shaft Rotation
CW/CCW
Ring to Ring Center
7 15/16 in
Motor Frame Material
Steel
Standards
CSA (MC236833), UL (E46035)
Hz
60 Hz
Usable @ 208V
Yes
Weight
27 lb
Usable @ 200V
No
Duty Cycle
Continuous
Drive Type
Belt Drive
Motor Enclosure Type
Totally Enclosed Fan Cooled
Manufacturers Warranty
1 yr
Shaft Design
Keyed
Mounting Position
Horizontal
Frequency
60 Hz
Ambient Temperature - Maximum
40 Degrees C
Frame Material
Steel
Nameplate Service Factor @ 60 Hz
1
Product Type
Fan and Blower Motor
Application
Fan/Blower
Number of Speeds
1
Full Load Current @ 60 Hz
2.6-2.6/1.3 A
Bearing Type
Ball
Insulation Class
B

Description

Fan and Blower Motor, Three Phase, Motor Design Three-Phase, 1/2 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 2.6-2.6/1.3 A Full Load Amps, 56 Frame, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Cradle Base
