Shop CENTURY

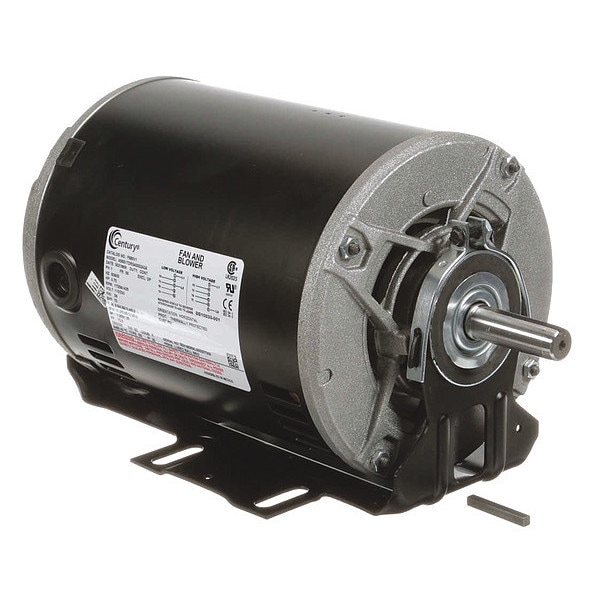

Split-Phase Belt Drive Motor, 3/4 HP, 56 Frame, 115/230V AC Voltage, 1,725 Nameplate RPM

  • Mfr # F680V1
  • Zoro # G7446039
product price:
$
352.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Split-Phase
Motor Enclosure Design
Open Dripproof
HP
3/4
No. of Speeds
1
RPM Range
1,701-1,800
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
F680V1
Zoro #
G7446039
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Overall Length
12 1/16 in
Body Dia.
6 9/16 in
Shaft Length
1 7/8 in
Length Less Shaft
10 3/16 in
Manufacturers Warranty Length
1 yr
Frame Size
56
Body Diameter
6.6 in
Shaft Diameter
5/8 in

Details

Item
Belt Drive Motor
Motor Design
Split-Phase
Motor Enclosure Design
Open Dripproof
HP
3/4
No. of Speeds
1
RPM Range
1,701-1,800
Nameplate RPM
1,725
Voltage
115V AC, 230V AC
Frame
56
Motor Mounting Type
Cradle Base
Motor Thermal Protection
Auto
Motor Service Factor
1.25
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 230V AC, 240V AC
Phase
Single
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Duty
Continuous
Motor Bearings
Ball
Motor Shaft Rotation
CW/CCW
Hz
50/60 Hz
Nominal Efficiency
70 %
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Standards
CE, CSA, UL Recognized
Ins. Class
B
Max. Ambient Temp.
104 Degrees F
Full Load Amps
10.4/5.2 A
Motor Frame Material
Steel
RPM @ 50Hz
1425
Weight
31 lb
Service Factor @ 50Hz
1.25
Full Load Amps @ 50Hz
9.6/4.8, 10.4/5.2 A
Voltage @ 50Hz
115/230 VAC
Usable @ 208V
No
HP @ 50Hz
3/4
Usable @ 200V
No
Duty Cycle
Continuous
Mounting Position
Horizontal
Nameplate Horsepower @ 50 Hz
3/4 hp
Number of Speeds
1
Nameplate Service Factor @ 50 Hz
1.25
Bearing Type
Ball
Product Type
Fan and Blower Motor
Nameplate Voltage @ 50 Hz
115/230V AC
Application
Fan/Blower
Duty Rating
Commercial
Drive Type
Belt Drive
Frequency
60/50 Hz
Nameplate Service Factor @ 60 Hz
1.25
Motor Enclosure Type
Open Drip Proof
Full Load Current @ 60 Hz
10.4/5.2 A
Insulation Class
B
Manufacturers Warranty
1 yr
Nameplate RPM @ 50 Hz
1425
Frame Material
Steel
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 50 Hz
9.6/4.8, 10.4/5.2 A
Shaft Design
Keyed

Description

Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, 10.4/5.2 A Full Load Amps, 56 Frame, 60/50 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.25, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base
