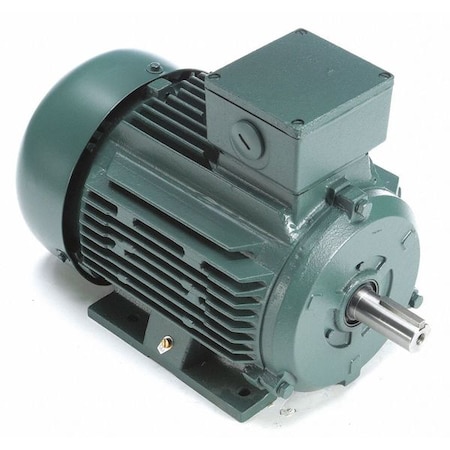

3-Phase Premium Efficiency Metric Motor, 3 HP, DF100L Frame, 230/460 Voltage, 1770 Nameplate RPM (Discontinued)
- Mfr # 193301.60
- Zoro # G1648491
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
193301.60
Zoro #
G1648491
UPC #
-
Country of Origin
China
Dimensions
Shaft Dia.
28 mm
Shaft Length
60 mm
Length Less Shaft
14 in
Overall Length
16 5/16 in
Description
Premium Efficiency Metric Motor, Three Phase, Motor Design 3-Phase, 3 HP, Nameplate RPM 1,770, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 8.0/4.0 A, 100L Frame, Usable @ 208V No, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection T-Stat, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
