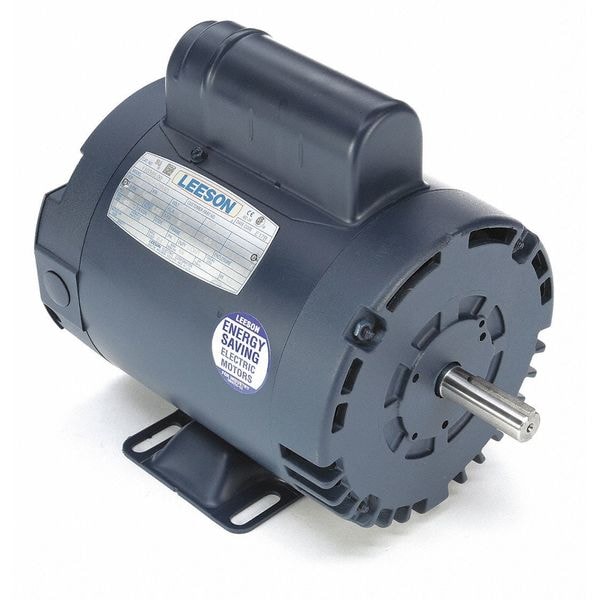

50 Hz Motor, 1/2 HP, 1425, 110/220 V, 56, ODP

LEESON| Zoro #: G1752965| Mfr #: 110395.00

$300.95 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G1752965 Mfr #: 110395.00
Motor Shaft Design: KeyedHz: 50
Motor Bearings: BallMotor Shaft Rotation: CW/CCW
Ambient Temperature: 40 Degrees CPhase: 1
No. of Speeds: 1Motor Application: General Application
Item: 50 Hz MotorMotor Mounting Position: All Angle
Motor Thermal Protection: NoneMotor Design: Capacitor-Start
Shaft Length: 1-7/8"Nameplate RPM: 1425
Voltage Compatibility: 110/220 50Hz, 220 50HzHP: 1/2
Ins. Class: BFull Load Amps: 8.2/4.1
Motor Service Factor: 1.25Motor Enclosure Design: Open Dripproof
Motor Mounting Type: Rigid BaseLength Less Shaft: 8-1/2"
Shaft Dia.: 5/8"Frame: 56
Voltage: 110/220Country of Origin (subject to change): United States

Product Description

50 Hz Motor, Capacitor-Start, Open Dripproof, 1/2 HP, No. of Speeds 1, Nameplate RPM 1425, Voltage 110/220, Hz 50, 1 Phase, Full Load Amps 8.2/4.1, 56 Frame, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Motor Thermal Protection None, Ins. Class B, 1.25 Motor Service Factor, Motor Bearings Ball, Motor Shaft Rotation CW/CCW, Motor Shaft Design Keyed, Ambient Temperature 40 Degrees C, Shaft Dia. 5/8 In., Shaft Length 1-7/8 In., Length Less Shaft 8-1/2 In., RPM Range 1401-1500
