  6. 50 Hz Motor, 2 HP, 1440,220 V, 182TC, TEFC

This item is Discontinued.

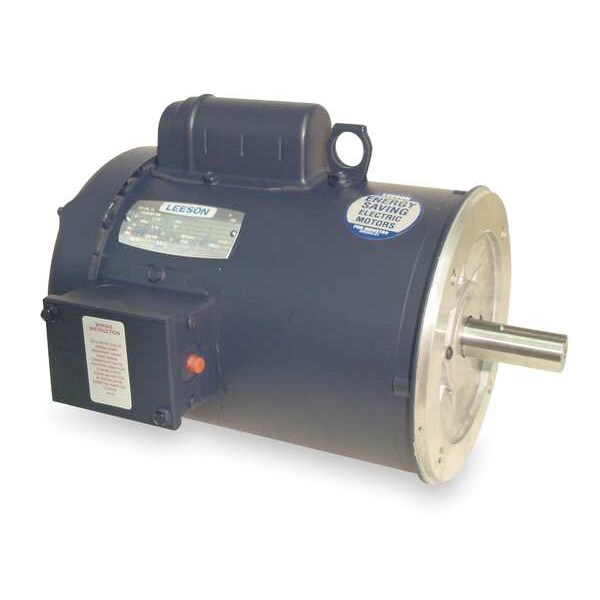

Leeson 50 Hz Motor, 2 HP, 1440,220 V, 182TC, TEFC 131599.00

50 Hz Motor, 2 HP, 1440,220 V, 182TC, TEFC (Discontinued)

  • Mfr # 131599.00
  • Zoro # G3479086
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
131599.00
Zoro #
G3479086
UPC #
691720018293
Country of Origin
Unknown

Dimensions

Shaft Length
2 3/4 in
Shaft Dia.
1 1/8 in
Length Less Shaft
12 1/4 in
Overall Length
14 15/16 in

Details

Motor Design
Capacitor-Start
Motor Enclosure Design
Totally Enclosed Fan-Cooled
HP
2
Nameplate RPM
1,440
Frame
182TC
Voltage
220V AC
Phase
Single
Motor Thermal Protection
Manual
Motor Mounting Type
Face
Full Load Amps
12.0 A
Motor Service Factor
1
No. of Speeds
1
Motor Shaft Rotation
CW/CCW
Ambient Temperature
40 Degrees C
Motor Bearings
Ball
Ins. Class
F
Motor Application
General Application
Motor Mounting Position
Horizontal
Voltage Compatibility
110/220-230V AC, 110/220V AC, 220V AC
Hz
50 Hz
RPM Range
1,401-1,500
Motor Shaft Design
Keyed
Item
50 Hz Motor
Nominal Efficiency
70 %
Full Load Amps @ 50Hz
12.0 A
RPM @ 50Hz
1,440
NEMA Design
None
Usable @ 208V
No
Duty Cycle
Continuous
Standards
CE Certified, CSA Certified, UL Listed
Voltage @ 50Hz
220V AC
Usable @ 200V
No
Max. Ambient Temp.
104 Degrees F
HP @ 50Hz
2
Service Factor @ 50Hz
1
Weight
73 lb
Motor Frame Material
Steel

Description

50 Hz Motor, Single Phase, Motor Design Capacitor-Start, 2 HP, Nameplate RPM 1,440, No. of Speeds 1, Voltage 220V AC, Full Load Amps 12.0 A, 182TC Frame, Usable @ 208V No, Usable @ 200V No, Hz 50 Hz, Motor Service Factor 1, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class F, NEMA Design None, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Face, Motor Mounting Position Horizontal
