  11. 50 Hz Mtr, 1 1/2hp, 1425, 110/220v, 56C, TEFC

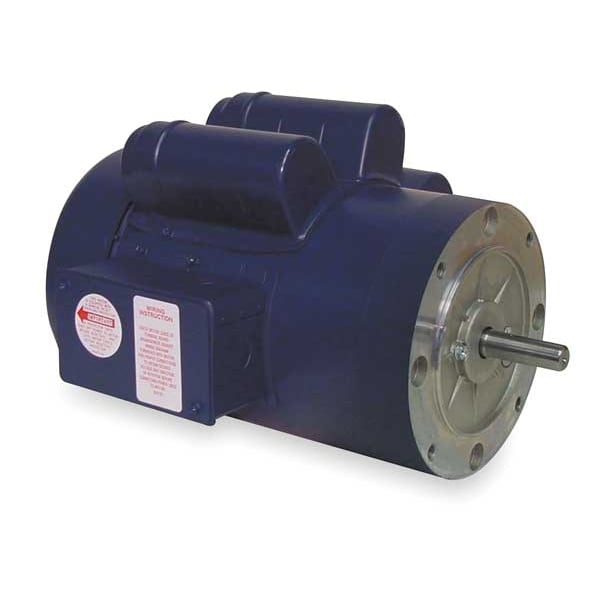

Leeson 50 Hz Mtr, 1 1/2hp, 1425, 110/220v, 56C, TEFC 113925.00 - main

50 Hz Mtr, 1 1/2hp, 1425, 110/220v, 56C, TEFC

  • Mfr # 113925.00

  • Zoro # G1999514

product price: $796.99
/ea
Sold in multiples of 2 for $1,593.98
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
Motor Enclosure Design
Totally Enclosed Fan Cooled
Frame
56C
Phase
Single
Motor Thermal Protection
Manual
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
113925.00
Zoro #
G1999514
UPC #
691720012901
Country of Origin
United States

Dimensions

Shaft Length
1 7/8 in
Shaft Dia.
5/8 in
Length Less Shaft
11 3/4 in
Overall Length
13 1/2 in

Details

Motor Design
Capacitor-Start
Motor Enclosure Design
Totally Enclosed Fan Cooled
Frame
56C
Phase
Single
Motor Thermal Protection
Manual
Motor Mounting Type
C-Face, Rigid Base
Full Load Amps
17.2/8.6 A
Motor Application
General Purpose
Item
50 Hz Motor
Ins. Class
F
Footnotes
24
Motor Service Factor
1
RPM Range
1,401-1,500
Ambient Temperature
40 Degrees C
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Hz
50 Hz
Motor Bearings
Ball
No. of Speeds
1
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
110/220-230V AC, 110/220V AC
Nominal Efficiency
76 %
Max. Ambient Temp.
40 Degrees C
Weight
45 lb
Usable @ 208V
Not Usable at 208V
RPM @ 50Hz
1,425 RPM
Full Load Amps @ 50Hz
17.2/8.6 A
Voltage @ 50Hz
110/220V AC
NEMA Design
None
Motor Frame Material
Steel
Duty Cycle
Continuous
Service Factor @ 50Hz
1
HP @ 50Hz
1 1/2 hp
Usable @ 200V
Not Usable at 200V
Standards
CE Certified, CSA Certified, UL Listed

Description

50 Hz Motor, Single Phase, Motor Design Capacitor-Start, Not Applicable HP, Nameplate RPM Not Applicable, No. of Speeds 1, Voltage Not Applicable, Full Load Amps 17.2/8.6 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 50 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class F, NEMA Design None, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
