  11. 50 Hz Mtr, 1/2 HP, 1425,110/220 V, 56C, TEFC

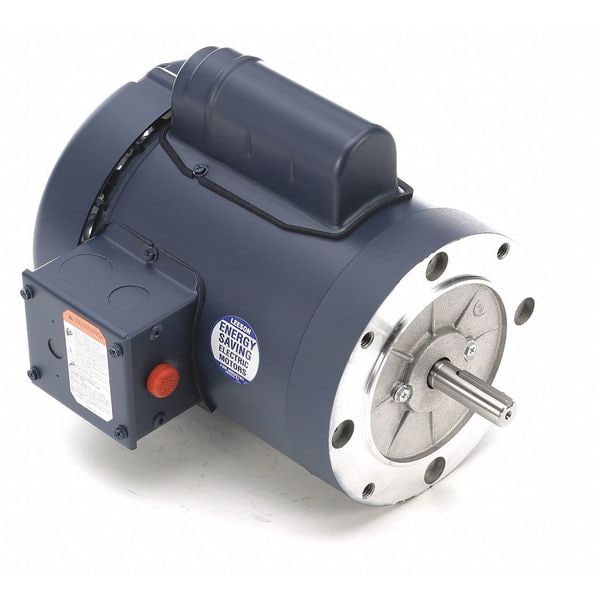

Leeson 50 Hz Mtr, 1/2 HP, 1425,110/220 V, 56C, TEFC 113922.00 - main

50 Hz Mtr, 1/2 HP, 1425,110/220 V, 56C, TEFC

  • Mfr # 113922.00

  • Zoro # G1178186

product price: $540.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
Motor Enclosure Design
Totally Enclosed Fan Cooled
Frame
56C
Phase
Single
Motor Thermal Protection
Manual
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
113922.00
Zoro #
G1178186
UPC #
691720012871
Country of Origin
United States

Dimensions

Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Length Less Shaft
9 3/4 in
Overall Length
11 1/2 in

Details

Motor Design
Capacitor-Start
Motor Enclosure Design
Totally Enclosed Fan Cooled
Frame
56C
Phase
Single
Motor Thermal Protection
Manual
Motor Mounting Type
C-Face, Rigid Base
Full Load Amps
8.2/4.1 A
Ambient Temperature
40 Degrees C
Motor Service Factor
1.15
Motor Bearings
Ball
Motor Shaft Rotation
CW/CCW
Motor Application
General Purpose
RPM Range
1,401-1,500
Hz
50 Hz
Voltage Compatibility
110/220-230V AC, 110/220V AC
Ins. Class
B
No. of Speeds
1
Motor Shaft Design
Keyed
Motor Mounting Position
Horizontal
Item
50 Hz Motor
Nominal Efficiency
69 %
Max. Ambient Temp.
40 Degrees C
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Motor Frame Material
Steel
Duty Cycle
Continuous
Full Load Amps @ 50Hz
8.2/4.1 A
Service Factor @ 50Hz
1.15
RPM @ 50Hz
1,425 RPM
Weight
26 lb
Standards
CE Certified, CSA Certified, UL Listed
Voltage @ 50Hz
110/220V AC
HP @ 50Hz
1/2 hp
NEMA Design
None

Description

50 Hz Motor, Single Phase, Motor Design Capacitor-Start, Not Applicable HP, Nameplate RPM Not Applicable, No. of Speeds 1, Voltage Not Applicable, Full Load Amps 8.2/4.1 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 50 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class B, NEMA Design None, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
