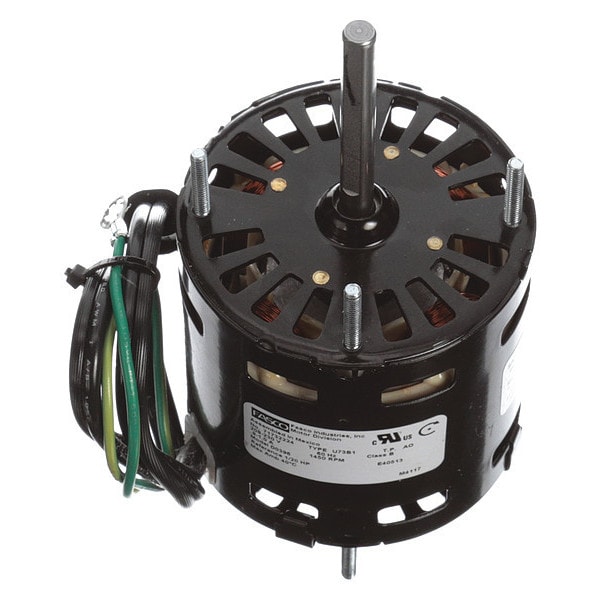

HVAC Motor, OAO, 1/20 HP, 1450 rpm, 208-230V

  • Mfr # D0396

  • Zoro # G0081807

product price:
$
78.19
/ea

Key Features

Voltage
208-230V AC
Nameplate RPM
1,450
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/20
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D0396
Zoro #
G0081807
UPC #
815585027300
Country of Origin
Mexico

Dimensions

Shaft Length
2 5/8 in
Length Less Shaft
3 3/4 in
Cord Length
14 in
Shaft Dia.
5/16 in
Body Dia.
3 5/16 in
Bolt Circle Dia.
2 7/8 in
Overall Length
6 1/8 in
Stud Size
#8-32
Lead Length
12 1/4 in
Body Diameter
3.3 in
Shaft Diameter
5/16 in
Frame Size
3.3
Bolt Circle Diameter
2 7/8 in
Mounting Stud Thread Size
#8-32
Wire Rope Length
6 1/8 in
Length
6 1/8 in

Details

Voltage
208-230V AC
Nameplate RPM
1,450
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/20
RPM Range
1,401-1,500
Motor Bearings
Sleeve
Plug Type
Round 2 Pin
Standards
UL Recognized
Motor Thermal Protection
Auto
Duty
Continuous
Item
OEM Replacement Motor
Ins. Class
B
Motor Design
Shaded Pole
Voltage Compatibility
115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Motor Shaft Design
Flat
Hz
60 Hz
Motor Application
HVAC/R
Motor Shaft Rotation
CWSE
Motor Mounting Type
Ring/Stud
Full Load Amps
0.90-1.0 A
Stud/Base Mtg. Pattern
2-27/32 in x 90 Degrees
Frame
3.3
Motor Sub Application
OEM Replacement
Application
General Application
Phase
Single
Mounting Stud Location
4/Both Ends
Number of Shafts
1
Max. Ambient Temp.
40 Degrees C
No. of Speeds
1
Motor Service Factor
1
Capacitor Required
Capacitor Not Required
Includes
Belly Band
Usable @ 208V
Usable at 208V
Usable @ 200V
Not Usable at 200V
Weight
4 lb
Mounting Holes
(8) #8-32
Motor Frame Material
Steel
Mounting
Stud
Shaft Design
Flat
Wattage
40 W
Nameplate Service Factor @ 60 Hz
1
Full Load Current @ 60 Hz
0.90-1.0 A
Ambient Temperature - Maximum
40 Degrees C
Sub Application
General Purpose
Drive Type
Direct Drive
Frequency
60 Hz
Bearing Type
Sleeve
Insulation Class
B
Product Type
OEM Replacement Motor
Motor Enclosure Type
Open Air Over
Frame Material
Steel

Description

OEM Replacement Motor, Single Phase, Motor Design Shaded Pole, 1/20 hp HP, Nameplate RPM 1,450 RPM, No. of Speeds 1, Voltage 208-230V AC, 0.90-1.0 A Full Load Amps, 3.3 Frame, Output Watts 40 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Frame Material Steel
