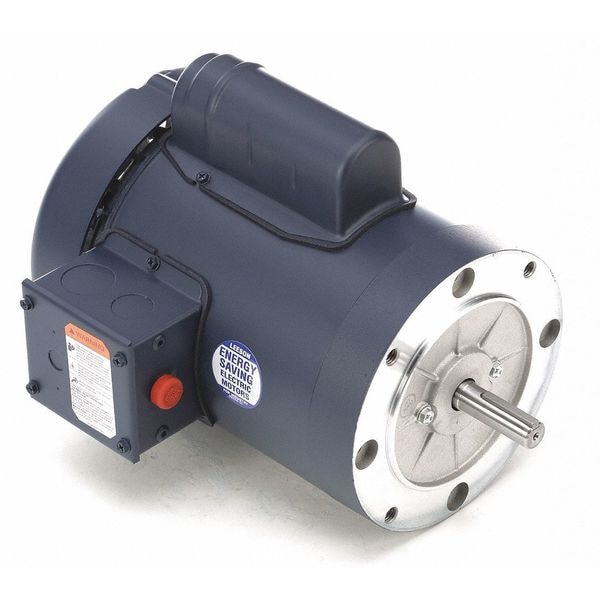

Leeson 50 Hz Mtr, 3/4 HP, 1425,110/220 V, 56C, TEFC 113923.00 - main

50 Hz Mtr, 3/4 HP, 1425,110/220 V, 56C, TEFC

  • Mfr # 113923.00

  • Zoro # G1260567

product price: $521.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
Motor Enclosure Design
Totally Enclosed Fan Cooled
Frame
56C
Phase
Single
Motor Thermal Protection
Manual
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
113923.00
Zoro #
G1260567
UPC #
691720012888
Country of Origin
United States

Dimensions

Length Less Shaft
10 1/4 in
Shaft Length
1 7/8 in
Shaft Dia.
5/8 in
Overall Length
12 in

Details

Motor Design
Capacitor-Start
Motor Enclosure Design
Totally Enclosed Fan Cooled
Frame
56C
Phase
Single
Motor Thermal Protection
Manual
Motor Mounting Type
C-Face, Rigid Base
Full Load Amps
11.8/5.9 A
Motor Shaft Rotation
CW/CCW
Hz
50 Hz
Motor Service Factor
1
No. of Speeds
1
Motor Bearings
Ball
Voltage Compatibility
110/220-230V AC, 110/220V AC
Item
50 Hz Motor
RPM Range
1,401-1,500
Motor Shaft Design
Keyed
Ins. Class
F
Ambient Temperature
40 Degrees C
Motor Mounting Position
Horizontal
Motor Application
General Purpose
Nominal Efficiency
68 %
Max. Ambient Temp.
40 Degrees C
Service Factor @ 50Hz
1
Voltage @ 50Hz
110/220V AC
Weight
34 lb
HP @ 50Hz
3/4 hp
Full Load Amps @ 50Hz
11.8/5.9 A
Standards
CE Certified, CSA Certified, UL Listed
RPM @ 50Hz
1,425 RPM
NEMA Design
None
Motor Frame Material
Steel
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V

Description

50 Hz Motor, Single Phase, Motor Design Capacitor-Start, Not Applicable HP, Nameplate RPM Not Applicable, No. of Speeds 1, Voltage Not Applicable, Full Load Amps 11.8/5.9 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 50 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class F, NEMA Design None, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
