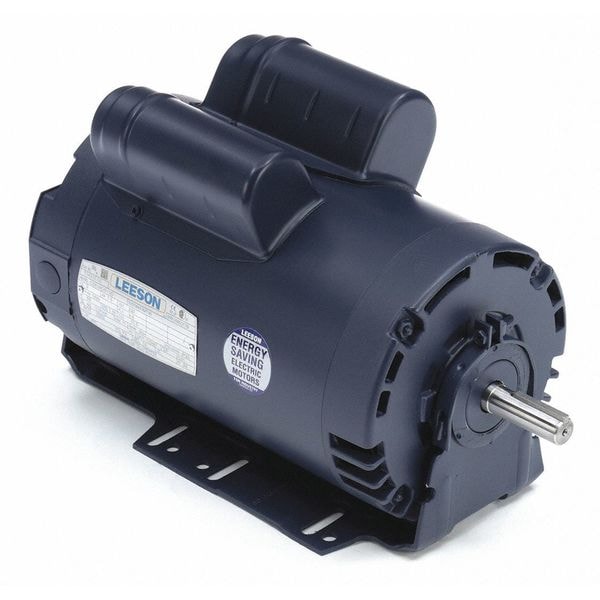

50 Hz Motor, 2 HP, 1440, 220 V, 56H, ODP

LEESON| Zoro #: G2343555| Mfr #: 114233.00

$466.82 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G2343555 Mfr #: 114233.00
Motor Shaft Design: KeyedHz: 50
Motor Shaft Rotation: CW/CCWMotor Bearings: Ball
Ambient Temperature: 40 Degrees CPhase: 1
No. of Speeds: 1Motor Application: General Application
Item: 50 Hz MotorMotor Mounting Position: All Angle
Motor Thermal Protection: NoneMotor Design: Capacitor-Start
Shaft Length: 1-7/8"Footnotes: 24
Nameplate RPM: 1440Voltage Compatibility: 220 50Hz
HP: 2Ins. Class: F
Full Load Amps: 9.6Motor Service Factor: 1.15
Motor Enclosure Design: Open DripproofMotor Mounting Type: Cradle Base
Length Less Shaft: 12"Shaft Dia.: 5/8"
Frame: 56HVoltage: 220
Country of Origin (subject to change): United States

Product Description

50 Hz Motor, Capacitor-Start, Open Dripproof, 2 HP, No. of Speeds 1, Nameplate RPM 1440, Voltage 220, Hz 50, 1 Phase, Full Load Amps 9.6, 56H Frame, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Motor Thermal Protection None, Ins. Class F, 1.15 Motor Service Factor, Motor Bearings Ball, Motor Shaft Rotation CW/CCW, Motor Shaft Design Keyed, Ambient Temperature 40 Degrees C, Shaft Dia. 5/8 In., Shaft Length 1-7/8 In., Length Less Shaft 12 In., RPM Range 1401-1500
