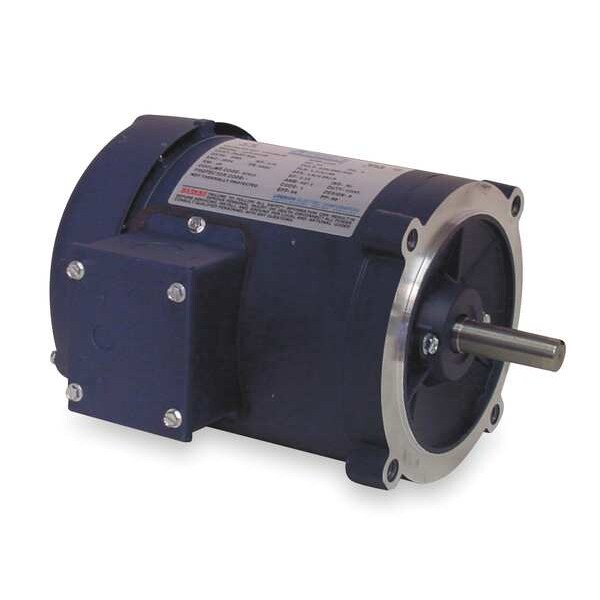

50hz Mtr, 3-Ph, 1/2hp, 2850, 220/380-440, 56C

LEESON| Zoro #: G0691397| Mfr #: 102691.00

$225.71 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G0691397 Mfr #: 102691.00
Voltage: 220/380/440Hz: 50
Motor Shaft Rotation: CW/CCWMotor Bearings: Ball
Ambient Temperature: 40 Degrees CPhase: 3
No. of Speeds: 1Motor Application: General Application
Motor Enclosure Design: Totally Enclosed Fan-CooledItem: 50 Hz Motor
Motor Mounting Position: All AngleMotor Thermal Protection: None
Motor Design: 3-PhaseVoltage Compatibility: 220/380/440 50Hz
Motor Mounting Type: FaceLength Less Shaft: 7-7/8"
Shaft Dia.: 5/8"Frame: 56C
Shaft Length: 1-7/8"Overall Length: 9-3/4"
Nameplate RPM: 2850HP: 1/2
Ins. Class: BFull Load Amps: 1.8/1.0/0.9
Motor Service Factor: 1.15Motor Shaft Design: Keyed
Country of Origin (subject to change): United States

Product Description

50 Hz Motor, 3-Phase, Totally Enclosed Fan-Cooled, 1/2 HP, No. of Speeds 1, Nameplate RPM 2850, Voltage 220/380/440, Hz 50, 3 Phase, Full Load Amps 1.8/1.0/0.9, 56C Frame, Motor Mounting Type Face, Motor Mounting Position All Angle, Motor Thermal Protection None, Ins. Class B, 1.15 Motor Service Factor, Motor Bearings Ball, Motor Shaft Rotation CW/CCW, Motor Shaft Design Keyed, Ambient Temperature 40 Degrees C, Shaft Dia. 5/8 In., Shaft Length 1-7/8 In., Length Less Shaft 7-7/8 In.
