Specifications
Product Information
MFR #
102689.00
Zoro #
G3104236
UPC #
691720256428
Country of Origin
Mexico
Dimensions
Shaft Length
1 7/8 in
Overall Length
9 11/16 in
Length Less Shaft
7 7/8 in
Shaft Dia.
5/8 in
Description

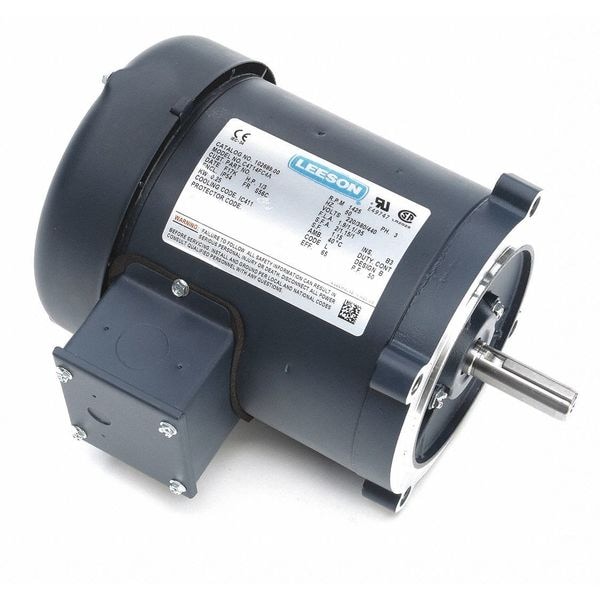

50 Hz Motor, Three Phase, Motor Design 3-Phase, 1/3 HP, Nameplate RPM 1,425, No. of Speeds 1, Voltage 220/380/440V AC, Full Load Amps 1.9/1.1/0.95 A, 56C Frame, Usable @ 208V No, Usable @ 200V No, Hz 50 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, NEMA Design B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Face, Motor Mounting Position Horizontal
