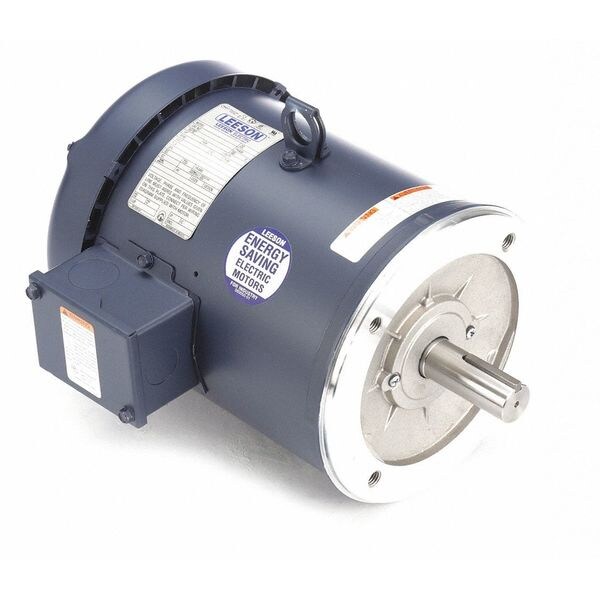

Leeson 50hz Mtr, 3-Ph, 3hp, 1425, 220/380-440, 182TC 131506.00 - main

50hz Mtr, 3-Ph, 3hp, 1425, 220/380-440, 182TC

  • Mfr # 131506.00

  • Zoro # G1471784

product price: $595.99
/ea
Sold in multiples of 2 for $1,191.98
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
Frame
182TC
Phase
Three
Motor Thermal Protection
None
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
131506.00
Zoro #
G1471784
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1 1/8 in
Shaft Length
2 3/4 in
Overall Length
14 in
Length Less Shaft
11 1/4 in

Details

Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
Frame
182TC
Phase
Three
Motor Thermal Protection
None
Motor Mounting Type
C-Face
Ambient Temperature
40 Degrees C
Ins. Class
F
Motor Bearings
Ball
Motor Mounting Position
Horizontal
Hz
50 Hz
Motor Application
General Purpose
RPM Range
1401-1500
Item
General Purpose Motor
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
220/380/440V AC
Motor Shaft Design
Keyed
No. of Speeds
1
Nominal Efficiency
82.5 %
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
RPM @ 50Hz
1,425 RPM
Standards
CE Certified, CSA Certified, UL Listed
NEMA Design
B
Service Factor @ 50Hz
1.15
Usable @ 208V
Not Usable at 208V
Duty Cycle
Continuous
Voltage @ 50Hz
220/380/440V AC
Full Load Amps @ 50Hz
8.2/4.7/4.1 A
Usable @ 200V
Not Usable at 200V
Weight
66 lb
HP @ 50Hz
3 hp

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, Not Applicable HP, Nameplate RPM Not Applicable, Frame 182TC, Voltage Not Applicable, 50 Hz Hz, Three Phase, Full Load Amps Not Applicable, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor Not Applicable, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 82.5 Percent, 1401-1500
