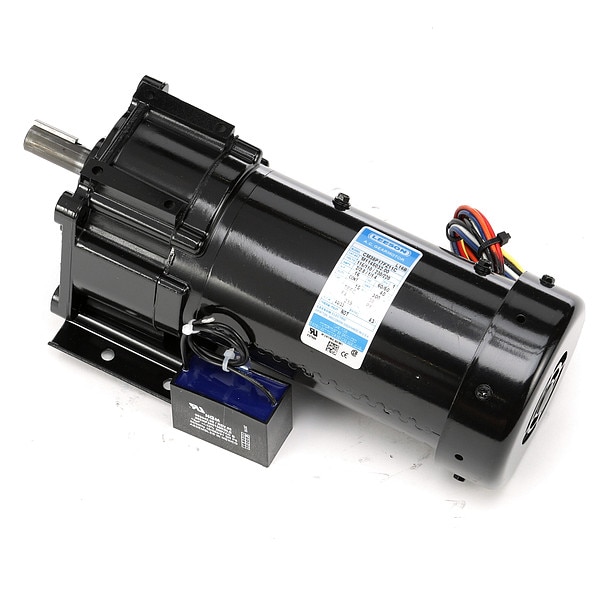

AC Gearmotor, 219 in-lb Max. Torque, 40 RPM Nameplate RPM, 115/230V AC Voltage, Single Phase

  • Mfr # M1145032.00
  • Zoro # G305687262
product price:
$
884.99
/ea
Free Shipping & Returns

Key Features

Gearmotor Voltage
115V AC, 230V AC
Gearmotor Phase
Single
Gearmotor Type
AC Gearmotor
Max. Torque
219 in-lb
Gearmotor Shaft Type
Hollow with Left Output Flange
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
M1145032.00
Zoro #
G305687262
UPC #
691720092156
Country of Origin
United States

Dimensions

Length Less Shaft
10.63 in
Overall Length
12.13 in
Shaft Dia. (Dimension U)
5/8 in
Dimension X
3.5 in
Output Shaft Diameter
5/8 in
Overall Width
5.63 in
Keyway Width
15/79 in
Keyway Depth
1 1/16 in
Output Shaft Length
1 1/2 in
Mount Hole Center-to-Center Width
4 in
Output Shaft Height
3.5 in
Mount Hole Center-to-Center Length
1.5 in
Overall Height
5.13 in
Wire Rope Length
12.13 in
Length
12.13 in
Fits Chest Size
Permanent Split Capacitor design rated for 115/230VAC 60/50 HZ input. Precision machined in-line steel gears. First stage steel helical gear followed by spur-type gears. Lubrication is permanent semi-fluid grease, Reducing possibility of leakage. Output shafts have needle bearings for high load capacities. Shafts are hardened steel. Optional conduit box available

Details

Item
AC Gearmotor
Gearmotor Voltage
115V AC, 230V AC
Gearmotor Phase
Single
Gearmotor Type
AC Gearmotor
Max. Torque
219 in-lb
Gearmotor Shaft Type
Hollow with Left Output Flange
Gearmotor Shaft Orientation
Parallel
Nameplate RPM
40 RPM
Gearmotor Enclosure
Totally Enclosed Fan-Cooled
Gearmotor Rotation
CW/CCW
Gearmotor Mounting Position
Horizontal or Vertical Shaft Down
Full Load Amps
2.1 A
Standards
CE, CSA, UL
Input HP
1/6 hp
Duty Cycle
Continuous
Application
Power Transmission
Capacitor Required
Yes
Bearings
Needle
Service Factor
1
Thermal Protection
None
Gear Material
Steel
Overhung Load
303 lb
Gear Ratio
43:1
Motor Type
Permanent Split Capacitor
Phase
Single
Gears
Helical Gear
Insulation Class
F
Max. Ambient Temp.
40 Degrees C
Rotation
CW/CCW
Lubrication
Semi-Fluid Grease
Shaft Orientation
Inline
Gear Type
Helical
Reversible Shaft Output
Yes
Hz
50/60 Hz
Frequency
50 Hz, 60 Hz
Features
Permanent Split Capacitor design rated for 115/230VAC 60/50 HZ input. Precision machined in-line steel gears. First stage steel helical gear followed by spur-type gears. Lubrication is permanent semi-fluid grease, Reducing possibility of leakage. Output shafts have needle bearings for high load capacities. Shafts are hardened steel. Optional conduit box available
Full Load Current
2.0/1.0 A
Overhung Load Capacity
303 lb
Maximum Output Speed
40 RPM
Output Location
Left Hand
Motor Duty Class
Continuous
Includes Capacitor
Capacitor Included
Output Shaft Type
Hollow
Maximum Torque
219 in-lb
Mounting Orientation
Horizontal, Vertical with Shaft Down
Bearing Type
Needle
Nameplate Speed
40 RPM
Operating Voltage
115V AC
Mount Type
Horizontal or Vertical Shaft Down
Number of Output Shafts
1
Maximum Ambient Temperature
104 Degrees F
Motor Insulation Class
F
Input Horsepower
0.167 hp
Motor Enclosure
Totally Enclosed Fan-Cooled

Description

AC Gearmotor, Number of Output Shafts 1, Motor Type Permanent Split Capacitor, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 40 RPM, Maximum Torque 219 in-lb, Overhung Load Capacity 303 lb, Rotation CW/CCW, Output Shaft Height 3.5 in, Mounting Orientation Horizontal, Vertical with Shaft Down, Operating Voltage 115V AC, Gear Ratio 43:1, Output Location Left Hand, Shaft Orientation Inline, Output Shaft Type Hollow, Includes Capacitor Capacitor Included, Motor Insulation Class F
