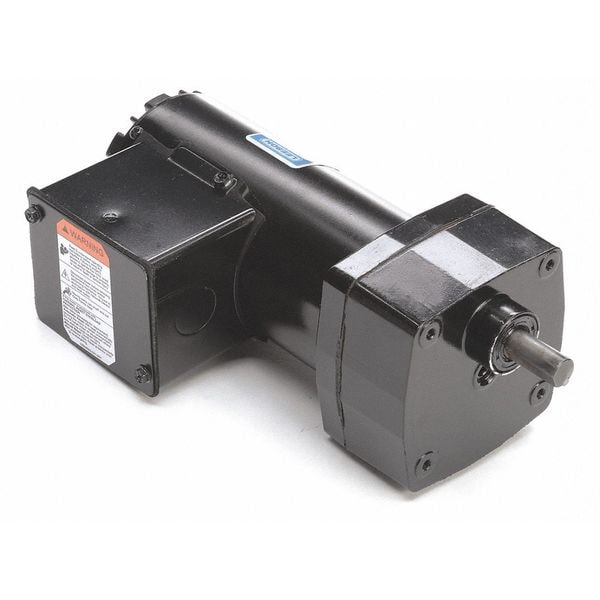

AC Gearmotor, 24 in-lb Max. Torque, 142 RPM Nameplate RPM, 208-230V AC Voltage, 3 Phase

  • Mfr # M1125284.00

  • Zoro # G2237934

product price:
$
728.00
/ea
Sold in multiples of 40 for $29,120.00
Free Shipping & Returns

Key Features

Gearmotor Voltage
208-230V AC
Gearmotor Phase
3
Gearmotor Type
AC Gearmotor
Max. Torque
24 in-lb
Gearmotor Shaft Type
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
M1125284.00
Zoro #
G2237934
UPC #
-
Country of Origin
United States

Dimensions

Length Less Shaft
9.83 in
Keyway Size Type
1/4 sq in x 3/4 in
Shaft Length (Dimension V)
1 in
Dimension S
0.25 in
Dimension N
1.56 in
Dimension AB
3.43 in
Dimension X
2.13 in
Keyway Size
1/4" Square x 3/4"
Height (Dimension O)
3.75 in
Dimension C
9.73 in
Dimension U
1/2 in
Shaft Dia. (Dimension U)
1/2 in
Dimension AA
0.88 in
Overall Length
9.73 in
Output Shaft Length
1 in
Output Shaft Diameter
1/2 in
Overall Width
5.3 in
Overall Height
3.75 in
Wire Rope Length
9.73 in
Length
9.73 in

Details

Item
AC Gearmotor
Gearmotor Voltage
208-230V AC
Gearmotor Phase
3
Gearmotor Type
AC Gearmotor
Max. Torque
24 in-lb
Gearmotor Shaft Type
Single
Gearmotor Shaft Orientation
Parallel
Nameplate RPM
142 RPM
Gearmotor Enclosure
Totally Enclosed Nonventilated
Gearmotor Rotation
CW/CCW
Gearmotor Brake Type
None
Gearmotor Mounting Position
Horizontal or Vertical Shaft Down
Full Load Amps
0.4 A
Standards
CE Y, CSA Y, UL
Input HP
1/15 hp
Rotation
CW/CCW
Enclosure
TENV
Phase
Three
Housing
Rolled Steel
Max. Ambient Temp.
40 Degrees C
Finish
Black High Gloss Enamel
Gear Material
Hardened Steel
Mounting
All Position Except Shaft Up
Gear Type
Helical (1st Stage), Spur (Subsequent Stages)
Shaft Orientation
Parallel
Thermal Protection
None
Hz
60 Hz
Lubrication
Permanent Heavy Duty Gear Oil
Motor Type
3-Phase
Service Factor
1
Gears
1st Stage Helical, AGMA Class 9, Hardened Steel, Subsequent Stages Spur
No Load RPM
150 RPM
Bearings
Gearbox: Heavy Duty, Needle Roller. Motor: Heavy Duty Ball
Voltage
208-230
Insulation Class
F4
Gear Case Material
Die Cast Aluminum
Seals
Heavy Duty, Single Lip, Spring Loaded
Gear Ratio
12:1
RPM Range
101 to 150
Application
Inverter Duty
Overhung Load
155 lb
Housing Material
Rolled Steel
Inverter Rated
Yes
Maximum Ambient Temperature
104 Degrees F
Brake Type
None
Motor Duty Class
Continuous
Full Load Current
0.4 A
Input Horsepower
0.067 hp
Operating Voltage
208-230V AC
Bearing Type
Gearbox: Heavy Duty, Needle Roller. Motor: Heavy Duty Ball
Overhung Load Capacity
155 lb
Maximum Torque
24 in-lb
Mount Type
Horizontal or Vertical Shaft Down
Motor Enclosure
Totally Enclosed Nonventilated
Motor Frame Designation
31
Keyway Type
1/4 sq in x 3/4 in
Number of Output Shafts
1
Mounting Orientation
Horizontal, Vertical with Shaft Down
Inverter Rating
12:1
Housing Material Finish
Black High Gloss Enamel
AGMA Gear Class
Class 9
Seal Type
Heavy Duty, Single Lip, Spring Loaded
Nameplate Speed
142 RPM
Motor Insulation Class
F
No Load Speed
150 RPM
Maximum Output Speed
142 RPM
Frequency
60 Hz

Description

AC Gearmotor, Number of Output Shafts 1, Motor Type 3-Phase, Motor Enclosure Totally Enclosed Nonventilated, Nameplate Speed 142 RPM, Maximum Torque 24 in-lb, Overhung Load Capacity 155 lb, Rotation CW/CCW, Mounting Orientation Horizontal, Vertical with Shaft Down, Operating Voltage 208-230V AC, Inverter Rated Yes, Gear Ratio 12:1, Brake Type None, Shaft Orientation Parallel, Motor Insulation Class F, Motor Duty Class Continuous, AGMA Gear Class Class 9, Application Inverter Duty
