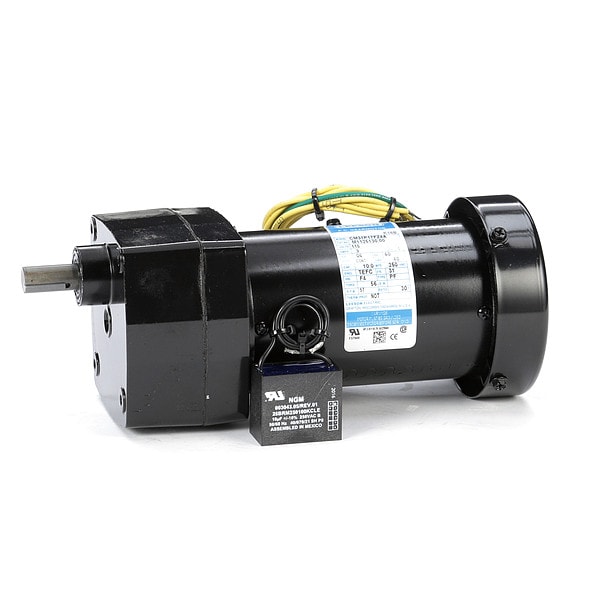

AC Gearmotor, 56 lb-in Max. Torque, 57 RPM Nameplate RPM, 115V Voltage, Single Phase

Mfr # M1125130.00
Zoro # G404853063

662.00

Free Shipping & Returns

Key Features

Gearmotor Voltage

115V

Gearmotor Phase

Single

Gearmotor Type

AC Gearmotor

Max. Torque

56 lb-in

Gearmotor Shaft Type

Single

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: M1125130.00
Zoro #: G404853063
UPC #: 691720091296
Country of Origin: United States

Dimensions

Length Less Shaft: 8.06 in
Keyway Size Type: 0.125" Square x 0.78"
Shaft Length (Dimension V): 1 in
Shaft Dia. (Dimension U): 1/2 in
Overall Length: 9.62 in
Dimension X: 2.43 in
Output Shaft Diameter: 1/2 in
Keyway Width: 1/8 in
Mount Hole Center-to-Center Width: 3.75 in
Mount Hole Center-to-Center Length: 1.88 in
Keyway Depth: 3/4 in
Overall Height: 3.97 in
Overall Width: 5.3 in
Output Shaft Length: 1 in
Wire Rope Length: 9.62 in
Length: 9.62 in

Details

Item: AC Gearmotor
Gearmotor Voltage: 115V
Gearmotor Phase: Single
Gearmotor Type: AC Gearmotor
Max. Torque: 56 lb-in
Gearmotor Shaft Type: Single
Gearmotor Shaft Orientation: Parallel
Nameplate RPM: 57 RPM
Gearmotor Enclosure: Totally Enclosed Fan-Cooled
Gearmotor Rotation: CCW
Gearmotor Brake Type: None
Gearmotor Mounting Position: Horizontal or Vertical Shaft Down
Full Load Amps: 0.9 A
Standards: CE, CSA, UL
Input HP: 3/50 hp
Phase: Single
Lubrication: Semi-Fluid Grease
Gear Ratio: 30:1
Hz: 60 Hz
Motor Type: Permanent Split Capacitor
Gear Type: Helical (1st Stage), Spur (Subsequent Stages)
Gears: Steel
Bearings: Needle
Thermal Protection: None
Rotation: CW/CCW
Max. Ambient Temp.: 40 Degrees C
Insulation Class: F
Shaft Orientation: Parallel
Includes: Conduit Box, PZ Gearmotor Mounting Bracket
Duty Cycle: Continuous
Service Factor: 1
Capacitor Required: Yes
Overhung Load: 171 lb
Gear Material: Steel
Starting Torque: 56 in-lb
Frequency: 60 Hz
Mounting Orientation: Horizontal, Vertical with Shaft Down
Motor Insulation Class: F
Brake Type: None
Maximum Torque: 56 in-lb
Keyway Type: Square
Maximum Ambient Temperature: 104 Degrees F
Nameplate Speed: 57 RPM
Motor Duty Class: Continuous
Features: Permanent Split Capacitor design rated for 115VAC 60 HZ input. Precision machined in-line steel gears. First stage steel helical gear followed by spur-type gears. Lubrication is permanent semi-fluid grease, Reducing possibility of leakage. Output shafts have needle bearings for high load capacities. Shafts are hardened steelOptional conduit box and PZ gearmotor mounting bracket available
Bearing Type: Needle
Overhung Load Capacity: 171 lb
Full Load Current: 0.9 A
Input Horsepower: 0.06 hp
Includes Junction/Conduit Box: Yes
Number of Output Shafts: 1
Maximum Output Speed: 57 RPM
Operating Voltage: 115V AC
Motor Enclosure: Totally Enclosed Fan-Cooled
Mount Type: Horizontal or Vertical Shaft Down
Includes Capacitor: Capacitor Included

Description

AC Gearmotor, Number of Output Shafts 1, Motor Type Permanent Split Capacitor, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 57 RPM, Maximum Torque 56 in-lb, Overhung Load Capacity 171 lb, Rotation CW/CCW, Mounting Orientation Horizontal, Vertical with Shaft Down, Operating Voltage 115V AC, Gear Ratio 30:1, Brake Type None, Shaft Orientation Parallel, Includes Capacitor Capacitor Included, Motor Insulation Class F, Includes Junction/Conduit Box Yes, Motor Duty Class Continuous
