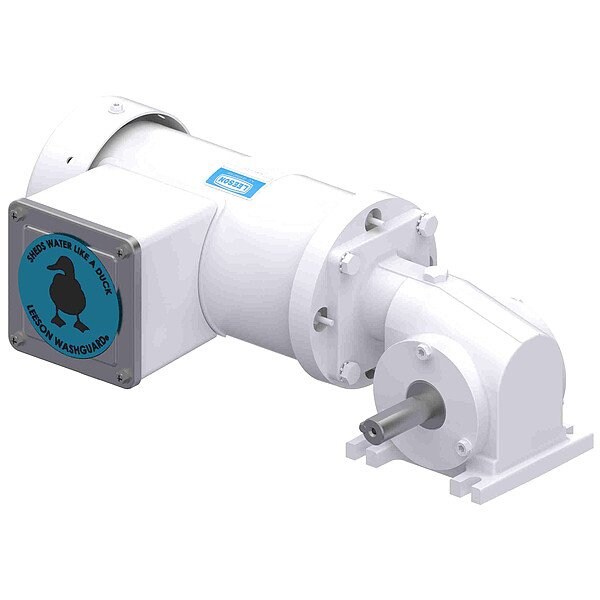

AC Gearmotor, 75 lb-in Max. Torque, 83 RPM Nameplate RPM, 110V Voltage, Single Phase

  • Mfr # M1145142.00
  • Zoro # G604924945
product price:
$
1,184.99
/ea
Sold in multiples of 24 for $28,439.76
Free Shipping & Returns

Key Features

Gearmotor Voltage
110V
Gearmotor Phase
Single
Gearmotor Type
AC Gearmotor
Max. Torque
75 lb-in
Gearmotor Shaft Type
Single Left
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
M1145142.00
Zoro #
G604924945
UPC #
691720105177
Country of Origin
United States

Dimensions

Length Less Shaft
11.29 in
Keyway Size Type
0.187" Square x 1"
Overall Length
13.05 in
Shaft Dia. (Dimension U)
5/8 in
Shaft Length (Dimension V)
1.8 in
Overall Width
6.68 in
Output Shaft Diameter
5/8 in
Keyway Width
3/16 in
Output Shaft Length
1 13/16 in
Overall Height
5.19 in
Output Shaft Height
1.67 in
Keyway Depth
1 in
Wire Rope Length
13.05 in
Length
13.05 in
Fits Chest Size
Ball Bearings used in gear housing, Hardened Worm-type gearing used, Interior components protected against corrosion, O-rings and gaskets used for sealing, Output shafts have needle bearings for high load capacities, Sealed output shafts, Shaft material coated with Teflon/Ceramic plating, UL listed and CSA certified, White epoxy painted motors

Details

Item
AC Gearmotor
Gearmotor Voltage
110V
Gearmotor Phase
Single
Gearmotor Type
AC Gearmotor
Max. Torque
75 lb-in
Gearmotor Shaft Type
Single Left
Gearmotor Shaft Orientation
Right Angle
Nameplate RPM
83 RPM
Gearmotor Enclosure
Totally Enclosed Fan-Cooled
Gearmotor Rotation
CCW
Gearmotor Brake Type
None
Gearmotor Mounting Position
Horizontal
Full Load Amps
2.0 A/1.0 A
Standards
CE, CSA, UL
Input HP
4/25 hp
Max. Ambient Temp.
40 Degrees C
Duty Cycle
Continuous
Shaft Orientation
Right Angle
Motor Type
Permanent Split Capacitor
Insulation Class
F
Finish
White Epoxy
Rotation
CW/CCW
Phase
Single
Lubrication
Oil Bath
Hz
60 Hz
Overhung Load
235 lb
Service Factor
1
Starting Torque
75 in-lb
Thermal Protection
None
Bearings
Ball
Capacitor Required
Yes
Gear Ratio
20:1
Includes Capacitor
Capacitor Included
Nameplate Speed
83 RPM
Features
Ball Bearings used in gear housing, Hardened Worm-type gearing used, Interior components protected against corrosion, O-rings and gaskets used for sealing, Output shafts have needle bearings for high load capacities, Sealed output shafts, Shaft material coated with Teflon/Ceramic plating, UL listed and CSA certified, White epoxy painted motors
Brake Type
None
Motor Duty Class
Continuous
Housing Material Finish
White Epoxy
Number of Output Shafts
1
Maximum Ambient Temperature
104 Degrees F
Bearing Type
Ball
Maximum Torque
75 in-lb
Motor Insulation Class
F
Full Load Current
2.0/1.0 A
Frequency
60 Hz
Maximum Output Speed
83 RPM
Output Location
Right Hand
Operating Voltage
115V AC
Overhung Load Capacity
235 lb
Mount Type
Horizontal
Mounting Orientation
Horizontal
Input Horsepower
0.16 hp
Keyway Type
Square
Motor Enclosure
Totally Enclosed Fan-Cooled

Description

AC Gearmotor, Number of Output Shafts 1, Motor Type Permanent Split Capacitor, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 83 RPM, Maximum Torque 75 in-lb, Overhung Load Capacity 235 lb, Rotation CW/CCW, Output Shaft Height 1.67 in, Mounting Orientation Horizontal, Operating Voltage 115V AC, Gear Ratio 20:1, Brake Type None, Output Location Right Hand, Shaft Orientation Right Angle, Includes Capacitor Capacitor Included, Motor Insulation Class F, Motor Duty Class Continuous
