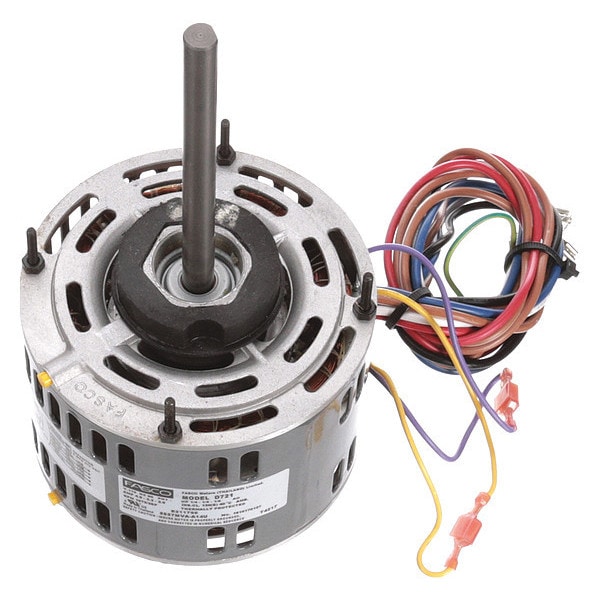

Direct Drive Blower Motor, 1/4 HP, 115V

Mfr # D721
Zoro # G6422851

$109.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Motor Sub Application Direct Drive Fan/Blower
Ins. Class B
HP 1/4, 1/5, 1/6
Bolt Circle Dia. 5 1/4 in
Motor Mounting Position All Angle

See all product information

Brand Fasco
MFR # D721
Zoro # G6422851
UPC #
818508021232
Country of Origin Thailand
Category Permanent Split Capacitor Blower Motors

Dimensions

Bolt Circle Dia.	5 1/4 in
Overall Length	10 11/16 in
Length Less Shaft	4 5/8 in
Body Dia.	5 5/8 in
Mounting Stud Length	3/4 in
Shaft Length	6 in
Stud Size	#8-32
Manufacturers Warranty Length	1 yr
Resilient Ring Dia.	2 1/2 in
Shaft Dia.	1/2 in
Lead Length	26 in

Details

Motor Sub Application	Direct Drive Fan/Blower
Ins. Class	B
HP	1/4, 1/5, 1/6
Motor Mounting Position	All Angle
No. of Speeds	3
RPM Range	1,001-1,100
Standards	CSA Certified, UL Recognized
Hz	60 Hz
Nameplate RPM	1,075
Ring to Ring Center	4 13/16 in
Motor Shaft Rotation	CW/CCW
Motor Bearings	Sleeve
Motor Shaft Design	Flat
Voltage Compatibility	115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Service Factor	1
Max. Ambient Temp.	40 Degrees C
Phase	Single
Voltage	115V AC
Frame	48
Capacitor Required	2MDV4
Application	Ideal for Blowers and Fans Used in Furnaces and Air-Conditioners
Mounting Stud Location	4/Shaft End
Nominal Efficiency	0.5 %
Motor Design	Permanent Split Capacitor
Motor Mounting Type	Stud
Mounting Stud Pattern	3-11/16 in x 3-11/16 in
Motor Enclosure Design	Open Air-Over
Item	Direct Drive Blower Motor
Duty	Continuous
Motor Application	HVAC/R
Full Load Amps	4.8-3.3-2.6 A
Motor Thermal Protection	Auto
Duty Cycle	Continuous
Weight	12 lb
Usable @ 200V	No
Usable @ 208V	No
Number of Shafts	1
Motor Frame Material	Steel

Description

Direct Drive Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4, 1/5, 1/6 HP, Nameplate RPM 1,075, No. of Speeds 3, Voltage 115V AC, Full Load Amps 4.8-3.3-2.6 A, 48 Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Lead Length 26 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Stud
