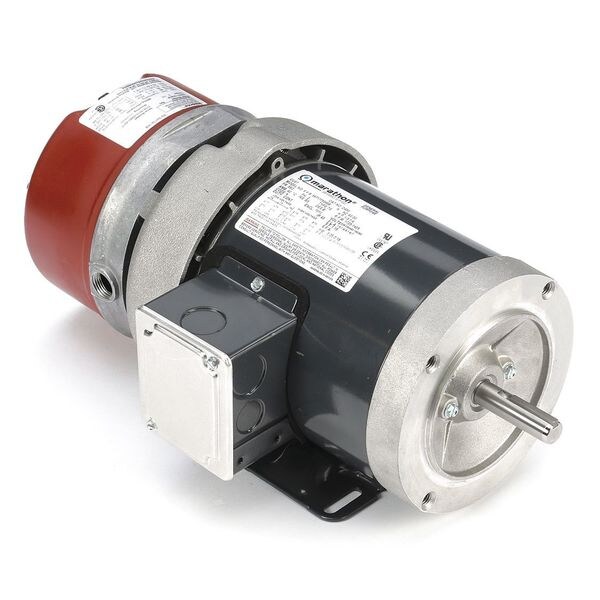

Brake Motor, TEFC, 1/3 HP, 56C, 208-230/460
Mfr # 056T17F5348
Zoro # G4486097
product price: $827.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
HP
1/3 hp
Nameplate RPM
1,725 RPM
Frame
56C
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
056T17F5348
Zoro #
G4486097
UPC #
-
Country of Origin
Mexico
Dimensions
Shaft Length
2 1/16 in
Length Less Shaft
13 11/16 in
Shaft Dia.
5/8 in
Overall Length
15 3/4 in
Description
Brake Motor, Three Phase, Motor Design Three-Phase, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 1.5-1.6/0.8 A Full Load Amps, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face, Rigid Base
