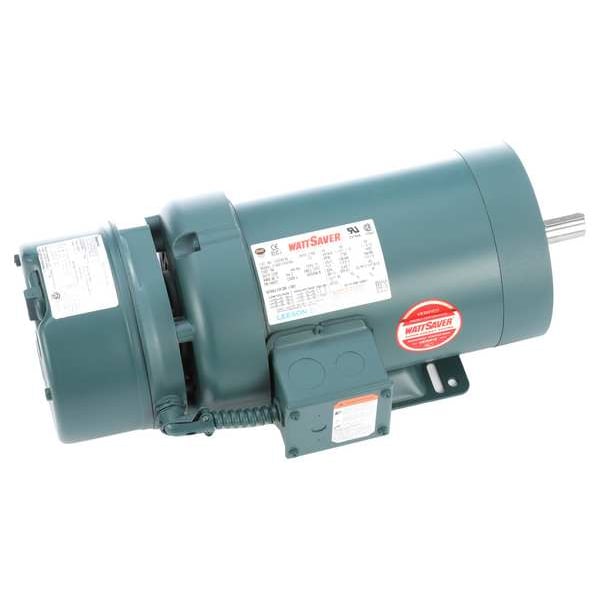

Three-Phase Brake Motor, 1 1/2 hp HP, 145TC Frame, 230/460V AC Voltage, 1,750 RPM Nameplate RPM

  • Mfr # 122249.00

  • Zoro # G102014810

product price:
$
1,451.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
HP
1 1/2 hp
Nameplate RPM
1,750 RPM
Frame
145TC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
122249.00
Zoro #
G102014810
UPC #
691720098745
Country of Origin
United States

Dimensions

Length Less Shaft
15 15/16 in
Shaft Dia.
7/8 in
Manufacturers Warranty Length
18 mo
Overall Length
18 1/8 in
Shaft Length
2 1/4 in
Shaft Diameter
7/8 in
Frame Size
145TC
Wire Rope Length
18 1/8 in
Length
18 1/8 in

Details

Item
Brake Motor
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
HP
1 1/2 hp
Nameplate RPM
1,750 RPM
Frame
145TC
Voltage
230/460V AC
Motor Mounting Type
C-Face, Rigid Base
Brake Rating
10 ft-lb
RPM Range
1,701-1,800
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Standards
CE, CSA, UL Recognized
Includes
Key
Bearing Protection
Double Shield
Conduit Box Position
F1
Voltage @ 50Hz
190/380V AC
Full Load Amps @ 50Hz
3.6/1.8 A
Motor Bearings
Ball
Duty Cycle
Continuous
Motor Frame Material
Steel
Motor Application
General Purpose
Motor Service Factor
1.15
Usable @ 200V
Not Usable at 200V
Phase
Three
Conduit Box Location
Exterior
Nominal Efficiency
86.5 %
Motor Shaft Rotation
CW/CCW
Weight
53 lb
Inverter Rated
Not Inverter Rated
Ins. Class
B
HP @ 50Hz
1 hp
Voltage Compatibility
230/460V AC
Motor Thermal Protection
T-Stat
Usable @ 208V
Not Usable at 208V
Service Factor @ 50Hz
1.15
Full Load Amps
2.4 A
No. of Speeds
1
Max. Ambient Temp.
40 Degrees C
RPM @ 50Hz
1,450 RPM
Brake Model/Series
56000
Hz
60/50 Hz
Inverter Rating
Not Inverter Rated
Mounting Position
Horizontal
Product Type
Brake Motor
Insulation Class
B
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1.15
Nameplate RPM @ 50 Hz
1,450 RPM
Frequency
60/50 Hz
Full Load Current @ 50 Hz
3.6/1.8 A
Nameplate Horsepower @ 50 Hz
1 hp
Frame Material
Steel
Full Load Current @ 60 Hz
2.4 A
Efficiency Rating
Premium Efficiency (IE3)
Number of Speeds
1
Application
General Purpose
Brake Series
56000
Brake Torque
10 ft-lb
Motor Enclosure Type
Totally Enclosed Fan Cooled
Shaft Design
Keyed
Manufacturers Warranty
18 mo
Ambient Temperature - Maximum
40 Degrees C
Nameplate Service Factor @ 50 Hz
1.15

Description

Brake Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,750 RPM, No. of Speeds 1, Voltage 230/460V AC, 2.4 A Full Load Amps, 145TC Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face, Rigid Base
